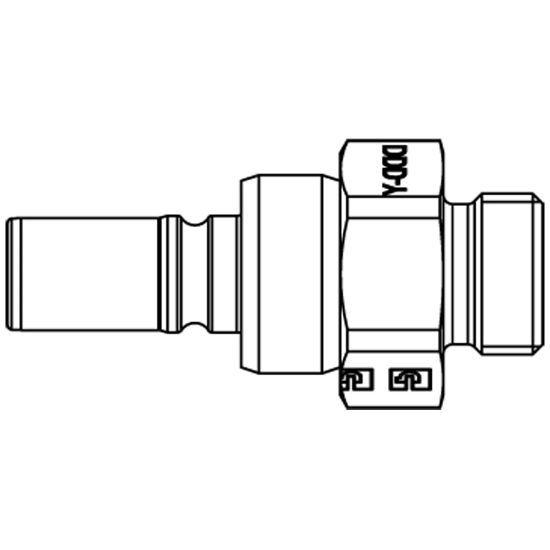

Dry Break Quick Connect Coupling - Series NSR - NSR-252-14HMCL

Name: Dry Break Quick Connect Coupling - Series NSR - NSR-252-14HMCL
SKU: NSR-252-14HMCL
Availability: OutOfStock

Dry break stainless steel quick coupling system with nominal diameter 6, 9 or 12 for railway applications up to 160 bar.

Availability:

Backordered

SKU: NSR-252-14HMCL

Qty:

Products specifications

Attribute name	Attribute value
Materials of Construction	Stainless Steel	Seal Material	NBR
Maximum Operating Temperature	60 °C	Maximum Operating Pressure	160 bar
Minimum Operating Temperature	-40 °C	Diameter	6 nom
Application	Transportation	Division	High Pressure Connectors Europe Division
Version	Flat-sealing	Outside Diameter	n/a
Valve Included	Yes
Connection Thread Size (inch)	14 x 1,5	Type	Plug
Connection Type	Male Thread - metric	Length (mm)	81

Product resources

Compliance, Certifications & Safety

Safety instructions Quick Couplings

Literature and Reference Materials

Hydraulic Quick Couplings Catalogue--CAT/3800-HYD/UK
