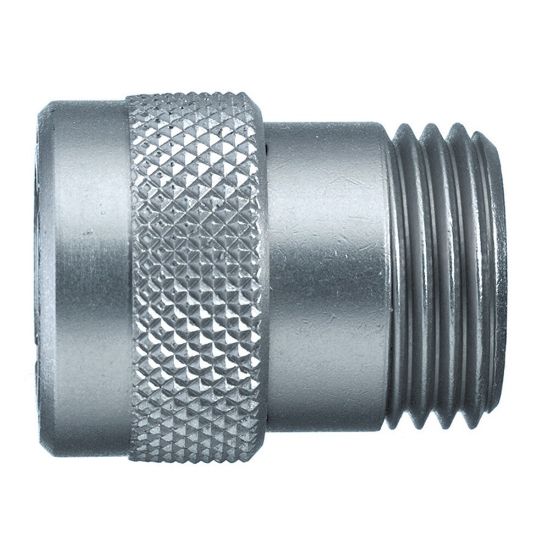

Quick Coupling with Parker own Profile, Series 41 - 41KFAW21MPN

Name: Quick Coupling with Parker own Profile, Series 41 - 41KFAW21MPN
SKU: 41KFAW21MPN
Availability: OutOfStock

Quick coupling system with nominal diameter 10 for pneumatic and fluid handling applications up to 35 bar. Coupling system with Parker own profile. Available made of brass nickel plated.

Availability:

Backordered

SKU: 41KFAW21MPN

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Materials of Construction	Brass nickel plated
Maximum Operating Pressure	35 bar	Valve Included	No
Flow Rate	115 L/min	Length	31 mm
Seal Material	NBR	Outside Diameter	25 mm
Diameter	10 nom	Maximum Operating Temperature	100 °C
Minimum Operating Temperature	-20 °C	Hex Size	n/a
Version	Straight-Through
Connection Thread Size (mm)	na	Connection Thread Size (inch)	1/2
Connection Type	Male Thread - parallel	Hose I.D.	na
Type	Coupling
