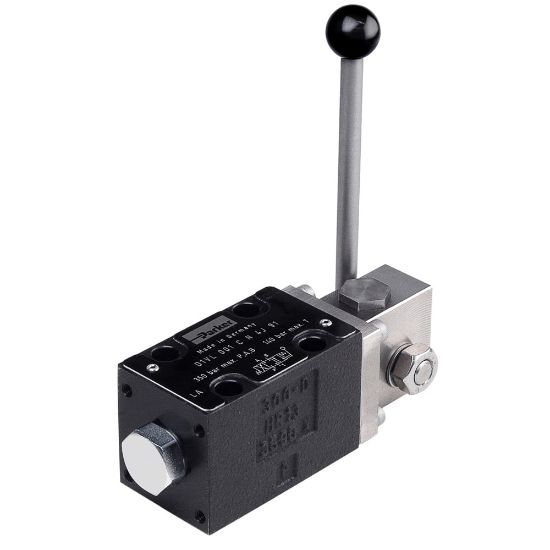

Direct Operated Directional Control Valve - Series D1VL / D3DL - D1VL001CN4K

Name: Direct Operated Directional Control Valve - Series D1VL / D3DL - D1VL001CN4K
SKU: D1VL001CN4K
Availability: OutOfStock

The direct operated directional control valves series D1VL (NG06 / CETOP 03 / NFPA D03) and D3DL (NG10 / CETOP 05 / NFPA D05) with hand lever provide high flow and feature a wide range of spool options.

Availability:

Backordered

SKU: D1VL001CN4K

Qty:

Products specifications

Attribute name	Attribute value
Maximum Flow Rate	80 L/min	Operation Type	Direct
Actuation Type	Manual	Maximum Operating Pressure	350 bar
Body Material	Cast Iron	Weight	1.4 kg
Division	Industrial Systems Division Europe	For Fluid Type	Hydraulic Oil According to DIN 51524
Maximum Operating Temperature	60 °C	Seal Material	NBR
Mounting Position	Unrestricted	Minimum Operating Temperature	-25 °C
Function	3-Way	Mounting Type	Subplate
Product Series	Directional Control Valve
Spool Position	3 positions, spring offset in position 0, operated in position a or b	Spool Code	001
Actuation	Hand lever side B	Seal Material	NBR
Switching Option	Center of rotation above spool axis	Port Connection	NG06 / CETOP 03
