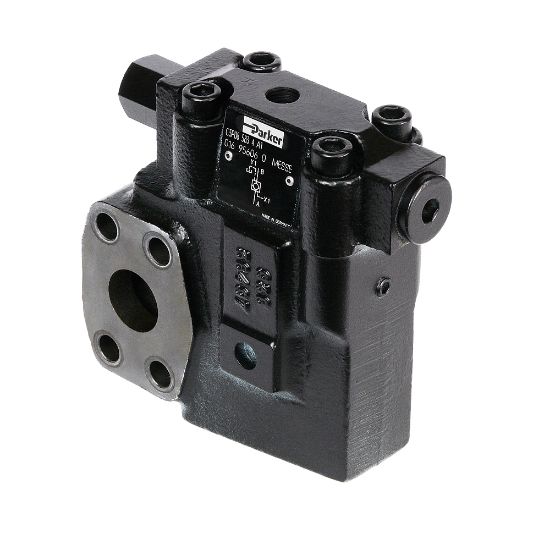

OBSOLETE: Pilot Operated Check Valve, SAE Flange - Series C5P - 026-96633-0

Name: OBSOLETE: Pilot Operated Check Valve, SAE Flange - Series C5P - 026-96633-0
SKU: 026-96633-0
Availability: OutOfStock

This product is no longer available – please contact us for further assistance.

Availability:

Backordered

SKU: 026-96633-0

Qty:

Products specifications

Attribute name	Attribute value
Division	Hydraulic Valve Systems Division Europe	Product Series	Check Valve
Connection Type	Flange	Connection Size	n/a
Flow Direction	A to B	Configuration	n/a
Operation Type	Pilot	Pilot Port Type	G 1/4 (X1, Y1)
Cracking Pressure	1.0 bar	Maximum Operating Pressure	350 bar
Body Material	Cast Iron	Weight	3.9 kg
Minimum Operating Temperature	-20 °C	Mounting Type	Flanged according SAE
Maximum Flow Rate	180 L/min	Actuation Type	Pilot Operated
Maximum Operating Temperature	60 °C	Seal Material	NBR
Cracking Pressure	1.0 / 1.5 bar	DIN Flange Size	SAE61
Material - Seals	NBR	Port Connection	SAE 3/4
Additional Options	NA	Opening Pressure Ratio	8:1
Seal Material	NBR
