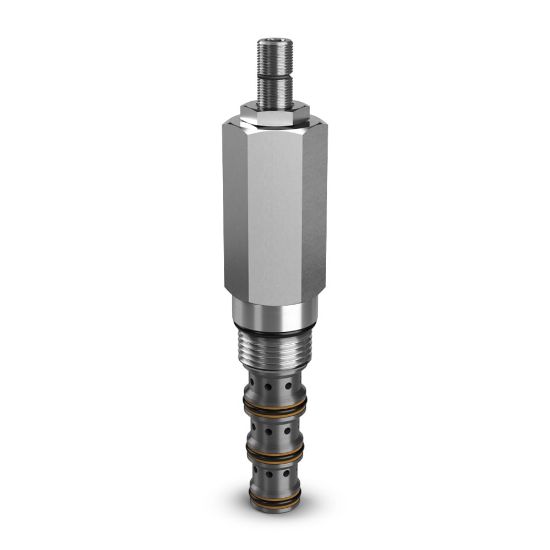

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Direct Acting Sequence Valve - B04H4GZV

Name: Direct Acting Sequence Valve - B04H4GZV
SKU: B04H4GZV
Availability: OutOfStock

Parker’s direct acting sequence valves can be piloted and vented allowing multiple actuators to work in sequence based on pressure settings; working with flows up to 56 lpm (15 gpm) and pressures up to 420 bar (6000 psi).

Availability:

Backordered

SKU: B04H4GZV

Qty:

Products specifications

Attribute name	Attribute value
Maximum Operating Pressure	420 bar	Maximum Operating Temperature	400 °F
Seal Material	Fluorocarbon	Body Material	n/a
Configuration	Normally Closed (NC)	Minimum Operating Temperature	-26 °C
Operating Temperature	-26 to 204 °C	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
For Fluid Type	Synthetic Hydraulic Fluids	Pilot Location	External
Filter Efficiency Rating	SAE Class 4	Flow Rate	12 Gal/min
Mounting Type	Screw-in Cartridge	Actuation Type	Pressure Sensing
Division	Mobile Hydraulic Systems Division Europe	Leak Rate	25 cm3/min @ 1450 Psi (100 bar)
Operation Type	Automatic	Valve Material	Hardened Steel (all operating parts)
Installation Torque	37 lb-ft	Adjustment Mechanism	Screw
Maximum Tank Pressure	420 bar	Maximum Inlet Pressure Rating	420 bar
Pressure Control Range	30 to 2400 psi	Function	Direct Acting Sequence
Drain Option	External	Sealed Pilot Included	No
Maximum Pressure Setting	166 bar	Pressure Control Sensitivity	248 psi Per Turn
Weight	0.73 lb	Cavity Size	C10-4
Maximum Flow Rate	47 L/min	Standard Setting Pressure	80 bar
Seal Material	Fluorocarbon	Adjustment Mechanism	Screw
Maximum Inlet Pressure Rating	6000 PSI, 420 BAR	Sealed Pilot Included	No
Pressure Control Range	30-2400 PSI, 2-166 BAR	Flow Rate	12 GAL/MIN, 47 L/MIN
