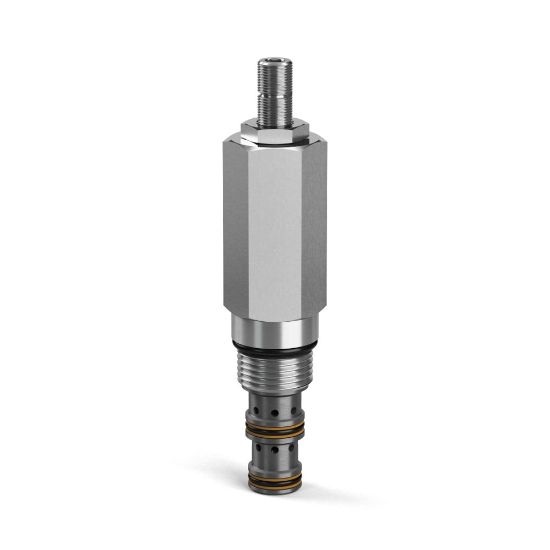

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Direct Acting Sequence Valve - B04G3GZNS

Name: Direct Acting Sequence Valve - B04G3GZNS
SKU: B04G3GZNS
Availability: OutOfStock

Parker’s direct acting sequence valves can be piloted and vented allowing multiple actuators to work in sequence based on pressure settings; working with flows up to 56 lpm (15 gpm) and pressures up to 420 bar (6000 psi).

Availability:

Backordered

SKU: B04G3GZNS

Qty:

Products specifications

Attribute name	Attribute value
Weight	0.3 kg	Seal Material	Nitrile
Maximum Operating Temperature	250 °F	Maximum Operating Pressure	6000 psi
Body Material	n/a	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
For Fluid Type	Synthetic Hydraulic Fluids	Pilot Location	External
Filter Efficiency Rating	SAE Class 4	Configuration	Normally Open (NO)
Minimum Operating Temperature	-30 °F	Mounting Type	Screw-in Cartridge
Actuation Type	Pressure Sensing	Division	Mobile Hydraulic Systems Division Europe
Leak Rate	25 cm3/min @ 1450 Psi (100 bar)	Operation Type	Automatic
Valve Material	Hardened Steel (all operating parts)	Installation Torque	37 lb-ft
Adjustment Mechanism	Screw	Maximum Tank Pressure	6000 psi
Operating Temperature	-34 to 121 °C	Maximum Inlet Pressure Rating	6000 psi
Function	Direct Acting Sequence	Cavity Size	C10-3
Drain Option	Internal	Maximum Pressure Setting	2400 psi
Standard Setting Pressure	1160 psi	Pressure Control Sensitivity	17 bar Per Turn
Flow Rate	10.6 Gal/min	Maximum Flow Rate	10.6 Gal/min
Sealed Pilot Included	Yes	Pressure Control Range	2 to 166 bar
Seal Material	Nitrile	Adjustment Mechanism	Screw
Maximum Inlet Pressure Rating	6000 PSI, 420 BAR	Pressure Control Range	30-2400 PSI, 2-166 BAR
Flow Rate	10.6 GAL/MIN, 40 L/MIN	Sealed Pilot Included	Yes
