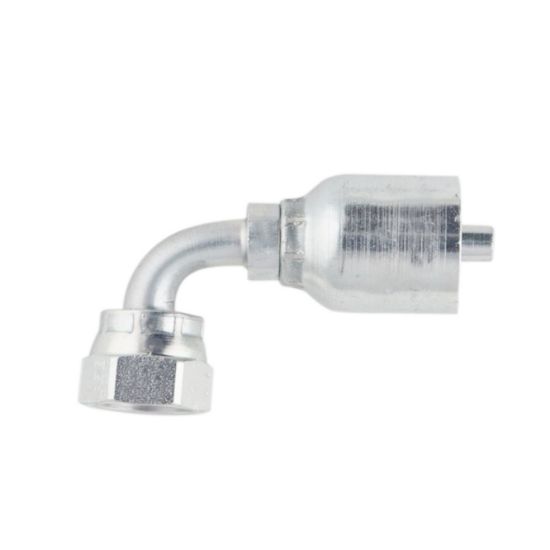

Crimp Style Hydraulic Hose Fitting - 43 Series Fittings - 1J943-10-10

Parker’s best-selling 43 Series crimp style hydraulic fittings are a complete range of cost-effective, permanent, crimp-style hydraulic hose fittings for use with the Parkrimp family of crimpers.

Availability:	75 in stock
Partner Available:	945 in stock

SKU: 1J943-10-10

$33.67

Products specifications

Attribute name	Attribute value
Banjo Port Diameter	n/a	Shape	Elbow 90° Short Drop
Disclaimer	The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met. The u	Flange Size	n/a
Product Style	Female Seal-Lok® - Swivel	Hose Inside Diameter	-10 (Size)
Nut Hex Size	n/a	Materials of Construction	Steel
Port Size	5/8 inch	Connection Size	n/a
Back-Up Hex Size	n/a	Division	Hose Products Division
Hose I.D. (size)	-10	Shape	Elbow 90° - Short Drop
Hex Type	Inch	Product Style	Female Seal-Lok® - Swivel
Materials of Construction	Steel	Port Connection	5/8"
