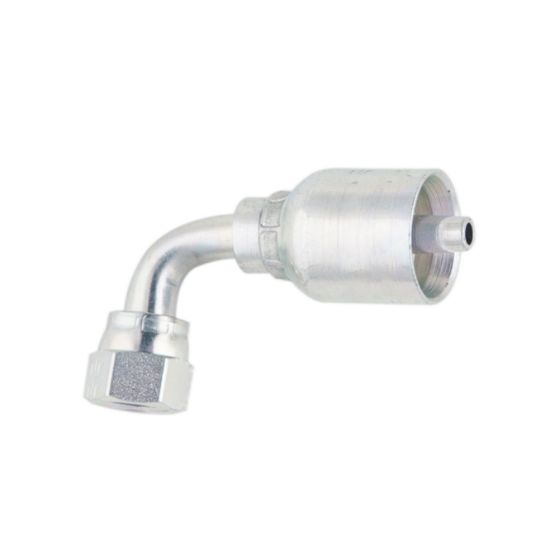

Crimp Style Hydraulic Hose Fitting - 43 Series Fittings - 13943-6-6

Parker’s best-selling 43 Series crimp style hydraulic fittings are a complete range of cost-effective, permanent, crimp-style hydraulic hose fittings for use with the Parkrimp family of crimpers.

Availability:	920 in stock
Partner Available:	6785 in stock

SKU: 13943-6-6

$18.54

Products specifications

Attribute name	Attribute value
Shape	Elbow 90° Short Drop	Materials of Construction	Steel
Nut Hex Size	17 mm	Division	Hose Products Division
Back-Up Hex Size	n/a	Disclaimer	The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met. The u
Product Style	Female JIC 37° - Swivel	Connection Size	9/16"-18 inch Thread
Banjo Port Diameter	n/a	Port Size	3/8 inch
Flange Size	n/a	Hose I.D. (size)	-6
Hose Inside Diameter	-6 (Size)
Hose I.D. (size)	-6	Shape	Elbow 90° - Short Drop
Product Style	Female JIC 37° - Swivel	Port Connection	3/8"
Hex Type	Inch	Materials of Construction	Steel
