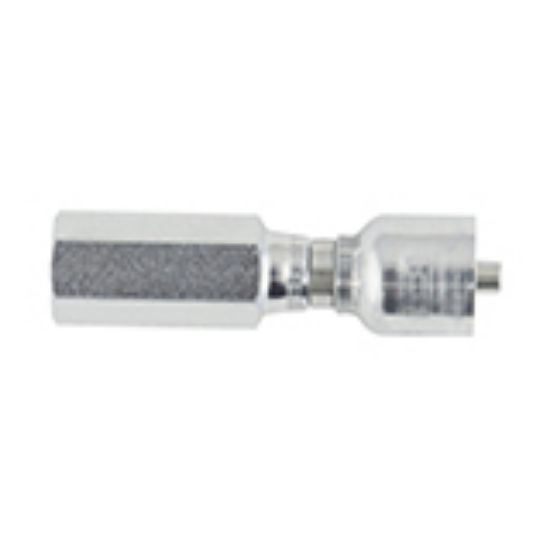

Crimp Style Hydraulic Hose Fitting - 43 Series Fittings - 1S243-4-4

Parker’s best-selling 43 Series crimp style hydraulic fittings are a complete range of cost-effective, permanent, crimp-style hydraulic hose fittings for use with the Parkrimp family of crimpers.

Availability:	Backordered
Partner Available:	51 in stock

SKU: 1S243-4-4

$43.29

Products specifications

Attribute name	Attribute value
Division	Hose Products Division	Flange Size	n/a
Shape	Straight	Disclaimer	The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met. The u
Back-Up Hex Size	n/a	Banjo Port Diameter	n/a
Materials of Construction	Steel	Hose Inside Diameter	1/4 inch
Port Size	1/4 inch	Connection Size	1/4"-18 inch Thread
Nut Hex Size	3/4 inch	Product Style	Female NPTF Pipe - Swivel
Shape	Straight	Materials of Construction	Steel
Port Connection	1/4"	Material	Steel
Hose I.D. (size)	-4	Hex Type	Inch
Product Style	Female NPTF Pipe - Swivel	Style	Female NPTF Pipe - Swivel
