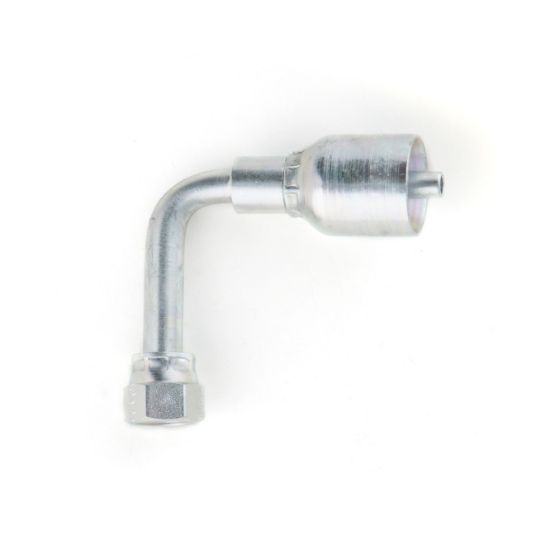

Crimp Style Hydraulic Hose Fitting - 43 Series Fittings - 14143-16-16

Parker’s best-selling 43 Series crimp style hydraulic fittings are a complete range of cost-effective, permanent, crimp-style hydraulic hose fittings for use with the Parkrimp family of crimpers.

Availability:	17 in stock
Partner Available:	345 in stock

SKU: 14143-16-16

$69.97

Products specifications

Attribute name	Attribute value
Division	Hose Products Division	Flange Size	n/a
Disclaimer	The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met. The u	Back-Up Hex Size	n/a
Banjo Port Diameter	n/a	Materials of Construction	Steel
Port Size	1 inch	Connection Size	1-5/16"-12 inch Thread
Hose Inside Diameter	-16 (Size)	Product Style	Female JIC 37° - Swivel
Nut Hex Size	38 mm	Shape	Elbow 90° Long Drop
Materials of Construction	Steel	Port Connection	1"
Product Style	Female JIC 37° - Swivel	Hose I.D. (size)	-16
Hex Type	Inch	Shape	Elbow 90° - Long Drop
