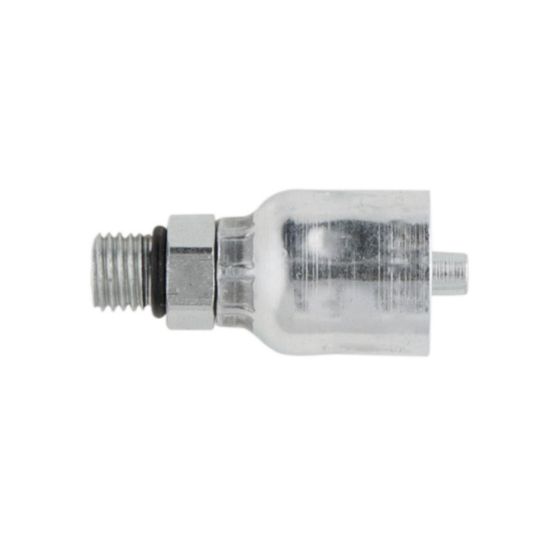

Crimp Style Hydraulic Hose Fitting - 43 Series Fittings - 10543-8-6

Parker’s best-selling 43 Series crimp style hydraulic fittings are a complete range of cost-effective, permanent, crimp-style hydraulic hose fittings for use with the Parkrimp family of crimpers.

Availability:	40 in stock
Partner Available:	1199 in stock

SKU: 10543-8-6

$10.73

Products specifications

Attribute name	Attribute value
Division	Hose Products Division	Flange Size	n/a
Shape	Straight	Disclaimer	The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met. The u
Nut Hex Size	n/a	Back-Up Hex Size	n/a
Banjo Port Diameter	n/a	Materials of Construction	Steel
Port Size	1/2 inch	Hose Inside Diameter	3/8 inch
Product Style	Male SAE Straight Thread with O-Ring - Rigid	Connection Size	3/4"-16 inch Thread
Shape	Straight	Materials of Construction	Steel
Port Connection	1/2"	Product Style	Male SAE Straight Thread with O-Ring - Rigid
Hose I.D. (size)	-6	Hex Type	Inch
