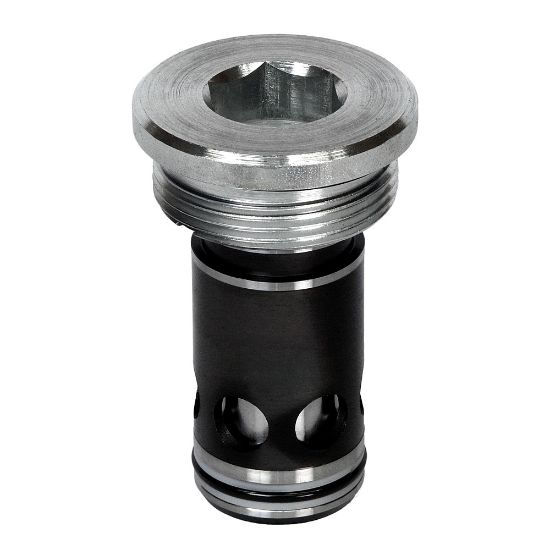

Check Valve - Series SPZBE - 031080200036

Name: Check Valve - Series SPZBE - 031080200036
SKU: 031080200036
Availability: OutOfStock

Parker check valves series SPZBE in size NG16, NG25 and NG32 are proven slip-in cartridge valves. Key advantage of this robust valve: the little space which is required for installation.

Availability:

Backordered

SKU: 031080200036

Qty:

Products specifications

Attribute name	Attribute value
Division	Industrial Systems Division Europe	Maximum Operating Temperature	60 °C
Minimum Operating Temperature	-20 °C	Body Material	Steel
Maximum Operating Pressure	350 bar	Configuration	n/a
Mounting Type	Slip-in Cartridge	Seal Material	NBR
Product Series	Check Valve	Connection Size	n/a
Maximum Flow Rate	450 L/min	Operation Type	Direct
Mounting Position	Unrestricted	Actuation Type	Mechanical
Connection Type	n/a	Weight	0.5 kg
Flow Direction	Port A to B	Cracking Pressure	0.1 bar
Port Connection	NG25	Minimum Opening Pressure	0.1 bar
Mounting Style	Slip-in mounting	Material - Seals	NBR
