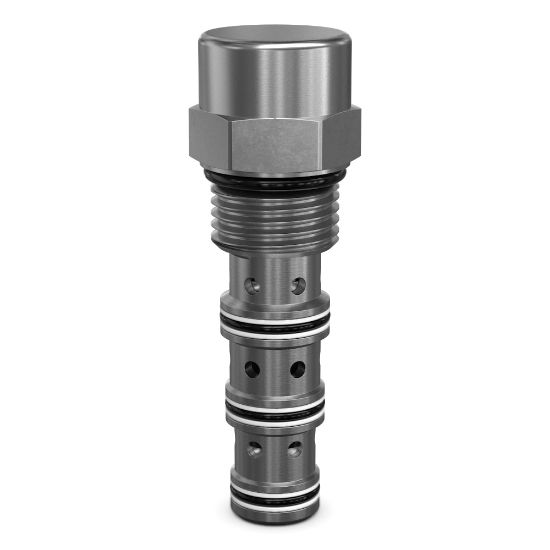

3 Way Pilot Operated Directional Control Valves - DH103C16V

Name: 3 Way Pilot Operated Directional Control Valves - DH103C16V
SKU: DH103C16V
Availability: OutOfStock

3-way Pilot Operated, Threaded Cartridge Spool Valves used in normally closed or normally open directional control three way circuits requiring remote pilot actuation.

Availability:

Backordered

SKU: DH103C16V

Qty:

Products specifications

Attribute name	Attribute value
Weight	0.23 kg	Operation Type	Pilot Operated
Seal Material	Fluorocarbon	Body Material	n/a
Maximum Operating Pressure	3500 psi	Minimum Operating Temperature	-15 °F
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Division	Hydraulic Systems Division
Pilot Location	External	Installation Torque	16 lb-ft
Maximum Inlet Pressure Rating	240 bar	Flow Rate	10 Gal/min
Drain Option	Internal	Cavity Size	C10-4
Maximum Flow Rate	10 Gal/min	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Maximum Operating Temperature	+400 °F	Configuration	Normally Open
Valve Material	All parts steel. All operating parts hardened steel	Operating Temperature	-26 to +204 °C
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Function	Directional Control
Leak Rate	50 @ 3500 PSI (240 BAR) cm3/min	Actuation Type	Pilot to shift
Flow Direction	2-3 Neutral, 3-4 Piloted	Switching Pressure	160 psi
Sealed Pilot Included	N/A	Standard Flow Rate Setting	N/A Gal/min
Seal Material	Fluorocarbon	Configuration	Normally Open
Flow Rate	10 GAL/MIN, 38 L/MIN	Flow Direction	2-3 Neutral, 3-4 Piloted
Switching Pressure	160 PSI, 11 BAR	Sealed Pilot Included	N/A
