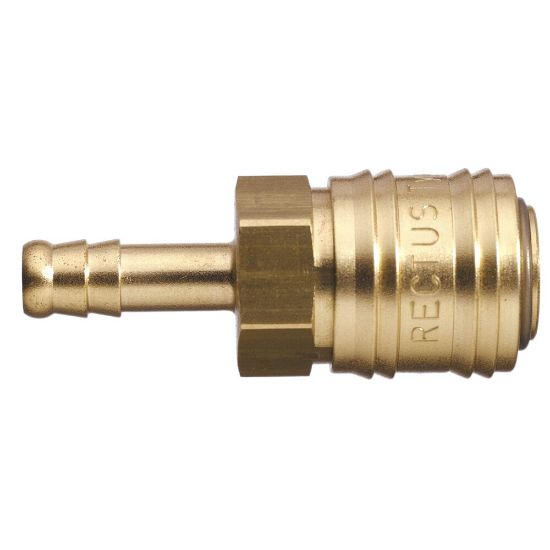

Basic Quick Coupling with ISO 6150 B Profile, Series 24 - 24KATF06MPN

Name: Basic Quick Coupling with ISO 6150 B Profile, Series 24 - 24KATF06MPN
SKU: 24KATF06MPN
Availability: OutOfStock

Basic quick coupling system with nominal diameter 5.5 for pneumatic and fluid handling applications up to 35 bar. Coupling system with ISO 6150 B profile. Available made of brass/steel.

Availability:

Backordered

SKU: 24KATF06MPN

Qty:

Products specifications

Attribute name	Attribute value
Maximum Operating Pressure	35 bar	Minimum Operating Temperature	-20 °C
Version	Single Shut-Off	Flow Rate	550 L/min
Length	60 mm	Valve Included	Yes
Diameter	5.5 nom	Outside Diameter	25 mm
Division	Low Pressure Connectors Europe Division	Hex Size	21 mm
Maximum Operating Temperature	100 °C	Seal Material	NBR
Hose I.D.	6	Connection Thread Size (inch)	na
Material	Brass	Type	Coupling
Connection Type	Hose Barb
