Brass Pipe Fittings - 207P-2

Parker's forged and extruded brass pipe fittings meet functional requirements of SAE J530 and SAE J531.

Availability:	589 in stock
Partner Available:	3192 in stock

SKU: 207P-2

$2.05

Products specifications

Attribute name	Attribute value
Division	Fluid System Connectors Division	Body Material	BRASS
Maximum Operating Pressure	1000 psi	Tube Material	Copper, Brass, Iron Pipe
Maximum Operating Temperature	121 °C	Specifications Met	SAE J530, SAE J531
Dimensional Weight	0.1104 lb	Minimum Operating Temperature	-53 °C
Connection 2 Size	1/8"	Length	n/a
Connection 1 Size	1/8"	Connection 1 Type	Female Pipe
Connection 2 Type	Female Pipe	Product Style	Coupling

Customers who bought this item also bought

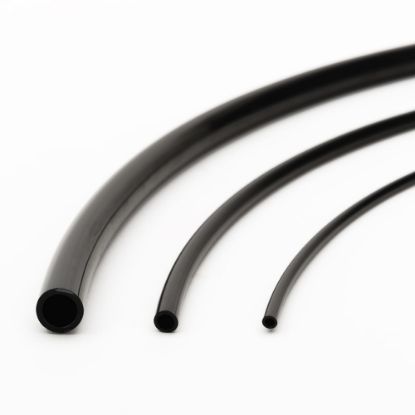

Nylon Tubing - NB-2.5-025

Nylon plastic tubing tubing is formulated from abrasion-resistant, heat and light-stabilized nylon that is capable of operating at 200°F. It exhibits low-level water absorption and is chemically resistant. (Series N/NB)

$0.46

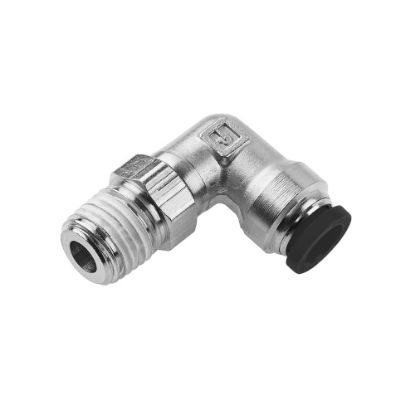

Push-to-Connect Nickel Plated Instant Fittings - Prestolok PLP Metal - W169PLP-5/32-2

Parker's Prestolok PLP push-to-connect fittings offer improved throughput, increased efficiency, smaller footprints, faster assembly and leak-reducing innovation.

$7.26

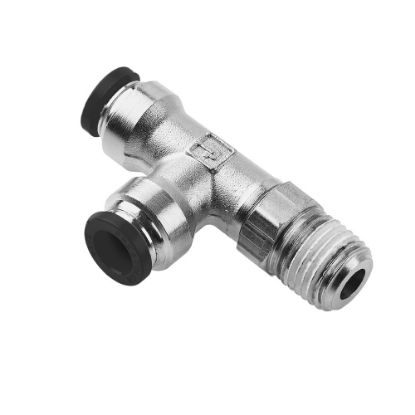

Push-to-Connect Nickel Plated Instant Fittings - Prestolok PLP Metal - W171PLP-5/32-2

Parker's Prestolok PLP push-to-connect fittings offer improved throughput, increased efficiency, smaller footprints, faster assembly and leak-reducing innovation.

$13.06

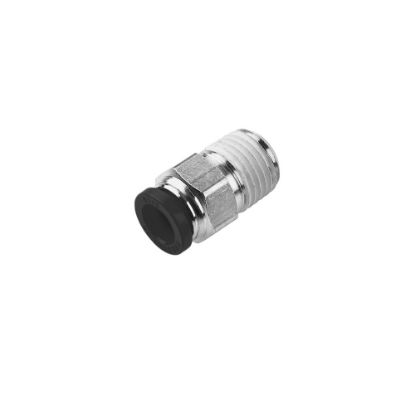

Push-to-Connect Nickel Plated Instant Fittings - Prestolok PLP Metal - W68PLP-5/32-2
