*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Brass 45° Flare Fittings - 48F-8-6

All brass 45° flare fitting that resists mechanical pullout. Meets functional requirements of SAE J512 and J513.

Availability:	144 in stock
Partner Available:	4258 in stock

SKU: 48F-8-6

$5.41

Products specifications

Attribute name	Attribute value
Division	Fluid System Connectors Division	Nut Material	BRASS
Body Material	BRASS	Brand	Parker
Technology	Fluid & Gas Handling	O-Ring Material	Fluorocarbon
Maximum Operating Temperature	121 °C	Minimum Operating Temperature	-53 °C
Division	Fluid System Connectors Division	Media	Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon
Application	Adapters, Fuels, Natural Gas, Propane, Refrigerant Lines	Specifications Met	SAE J512, SAE J513
Maximum Operating Pressure	750 psi	Tube Material	Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared
Dimensional Weight	0.11037769784172662 lb
Shape	Connector	Connection 2 Type	Male Pipe
Connection 1 Thread Size	3/4-16 inch	Connection 1 Type	Flare
Connection 1 Tube Outside Diameter	1/2 inch	Product Style	Flare to Pipe
Connection 3 Tube Outside Diameter	NA	Connection 3 Type	NA
Connection 2 Thread Size	3/8 inch	Connection 3 Thread Size	NA
Connection 2 Tube Outside Diameter	NA

Customers who bought this item also bought

Crimp Style Hydraulic Hose Fitting - 43 Series Fittings - 10643-6-6

Parker’s best-selling 43 Series crimp style hydraulic fittings are a complete range of cost-effective, permanent, crimp-style hydraulic hose fittings for use with the Parkrimp family of crimpers.

$7.95

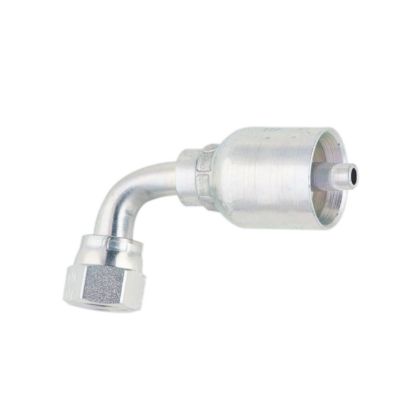

Crimp Style Hydraulic Hose Fitting - 43 Series Fittings - 13943-6-6
