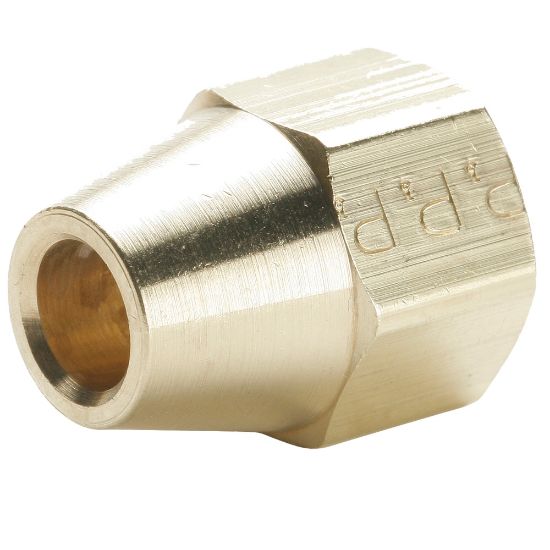

Brass 45° Flare Fittings - 41FS-12

All brass 45° flare fitting that resists mechanical pullout. Meets functional requirements of SAE J512 and J513.

Availability:	Backordered
Partner Available:	352 in stock

SKU: 41FS-12

$14.84

Products specifications

Attribute name	Attribute value
Media	Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon	Division	Fluid System Connectors Division
Maximum Operating Temperature	121 °C	Brand	Parker
O-Ring Material	Fluorocarbon	Nut Material	BRASS
Minimum Operating Temperature	-65 °F	Dimensional Weight	0.27594424460431655 lb
Technology	Fluid & Gas Handling	Application	Adapters, Fuels, Natural Gas, Propane, Refrigerant Lines
Body Material	BRASS	Tube Material	Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared
Division	Fluid System Connectors Division	Maximum Operating Pressure	44.8 bar
Specifications Met	SAE J512, SAE J513
Connection 3 Thread Size	NA	Connection 3 Tube Outside Diameter	NA
Connection 2 Tube Outside Diameter	NA	Connection 3 Type	NA
Connection 1 Type	Flare	Connection 2 Type	NA
Connection 1 Thread Size	1-1/16-14 inch	Connection 2 Thread Size	NA
Shape	Short Extruded Nut	Product Style	Flare
Connection 1 Tube Outside Diameter	3/4 inch
