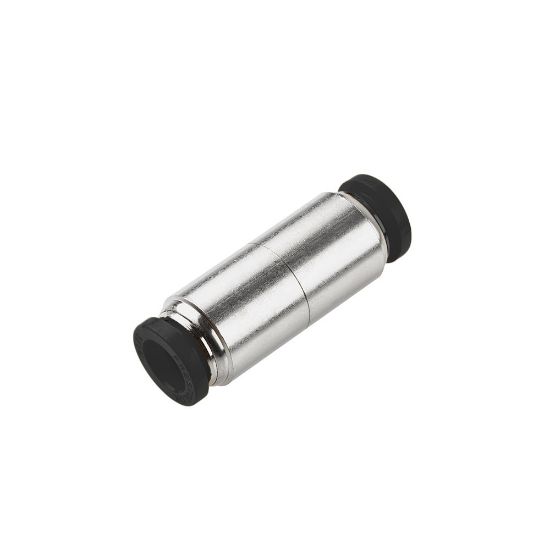

Push-to-Connect Nickel Plated Instant Fittings - Prestolok PLP Metal - 62PLP-3

Parker's Prestolok PLP push-to-connect fittings offer improved throughput, increased efficiency, smaller footprints, faster assembly and leak-reducing innovation.

Availability:	20 in stock
Partner Available:	284 in stock

SKU: 62PLP-3

$8.93

Products specifications

Attribute name	Attribute value
Division	Fluid System Connectors Division	Brand	Parker
Seal Material	Nitrile	Hex Size	n/a
Vacuum Pressure Rating	28 Inch-Hg	Industry	Industrial Manufacturing Equipment
For Fluid Type	Inert Gases	Technology	Pneumatics
Gripping Ring Material	STAINLESS STEEL	Body Material	Brass, Nickel-plated
Specifications Met	UL 94 V-0	Application	Automotive
Maximum Operating Temperature	200 °F	Materials of Construction	PVDF (Button)
Division	Fluid System Connectors Division	Maximum Operating Pressure	20.6 bar
Region of Origin	United States	Minimum Operating Temperature	-17.7 °C
Dimensional Weight	0.2179 lb	Tube Material	Polyurethane 90 to 95 Durometer Shore A
Configuration	Tube to Tube	Connection 1 Type	Push-to-Connect
Connection 1 Size	3/16"	Connection 2 Size	3/16"
Connection 2 Type	Push-to-Connect	Shape	Union
