Industrial Interchange, Push to Connect, Quick Connect Air Couplers - 30 Series - B33

Parker's general purpose quick connect air couplers are ideal for use across a spectrum of applications where low pressure air or fluid lines require fast and easy connection and disconnection.

Availability:	74 in stock
Partner Available:	1162 in stock

SKU: B33

$26.10

Qty:

Products specifications

Attribute name	Attribute value
Maximum Operating Pressure	300 psi	Dimensional Weight	0.07997601918465227 lb
Seal Material	Nitrile	Application	Air
Lock Type	Pawls	Maximum Operating Temperature	250 °F
Media	Low pressure fluids and compressed air	Minimum Operating Temperature	-40 °F
Specifications Met	Connects with A-A-59439 (MIL-C-4109F, ISO 6150-B	Valve Type	Tubular
Coupling Half	Coupler	Division	Quick Coupling Division
Sleeve Type	Push to Connect
Micron Rating	23 Nominal; 45 Absolute	Body Size (inch)	1/4
Thread Style	Female	Connection Thread Size (inch)	1/4 - 18
Connection Type	NPTF	Body Material	BRASS
Connection Hose I.D. (inch)	na

Customers who bought this item also bought

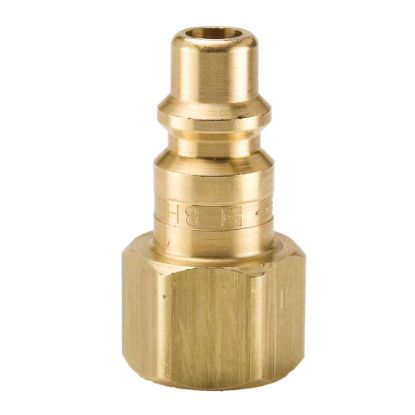

Pneumatic Industrial Interchange Nipples (A-A-59439, MIL-C-4109F, ISO 6150-B) - BH3C
