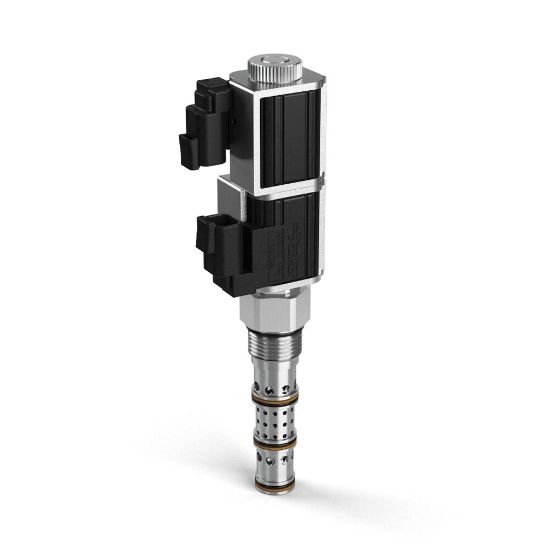

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

4 Way 3 Position Spool Type Solenoid Valve - DSH12557DNV

Name: 4 Way 3 Position Spool Type Solenoid Valve - DSH12557DNV
SKU: DSH12557DNV
Availability: OutOfStock

Parker has a large selection of direct acting 4-way, 3-position spool-type solenoid valves to cover a wide range of flow requirements up to 57 lpm (15 gpm) and pressures as high as 350 bar (5000 psi); closed, open, float, and tandem centers available.

Availability:

Backordered

SKU: DSH12557DNV

Qty:

Products specifications

Attribute name	Attribute value
Seal Material	Fluorocarbon	Body Material	n/a
Maximum Operating Pressure	5000 psi	Maximum Flow Rate	57 L/min
Minimum Operating Temperature	-15 °F	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Division	Hydraulic Systems Division	Flow Rate	15 Gal/min
Weight	0.45 kg	Function	4-way
Maximum Inlet Pressure Rating	5000 psi	Coil Nut Tightening Torque	3 lb-ft
Cavity Size	C12-4L	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Maximum Operating Temperature	+400 °F	Actuation Type	Electrical, Manual
Operation Type	Solenoid operated, Manually operated	Valve Material	All parts steel. All operating parts hardened steel
Operating Temperature	-26 to +204 °C	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Configuration	Tandem Center	Mounting Type	Screw in cartridge valve
Input Voltage	85% of rated voltage at 72°F (20°C) min	Coil Type	5/8" Super Coil
Leak Rate	160 @ 3000 PSI (210 BAR) cm3/min	Response Time	30-60 ms
Installation Torque	55 lb-ft	Override Functionality	Push/Pull - Center Detent
Maximum Tank Pressure	210 bar
Flow Rate	15 GAL/MIN, 57 L/MIN	Maximum Inlet Pressure Rating	5000 PSI, 350 BAR
Actuation Type	Electrical, Manual	Configuration	Tandem Center
Seal Type	Fluorocarbon
