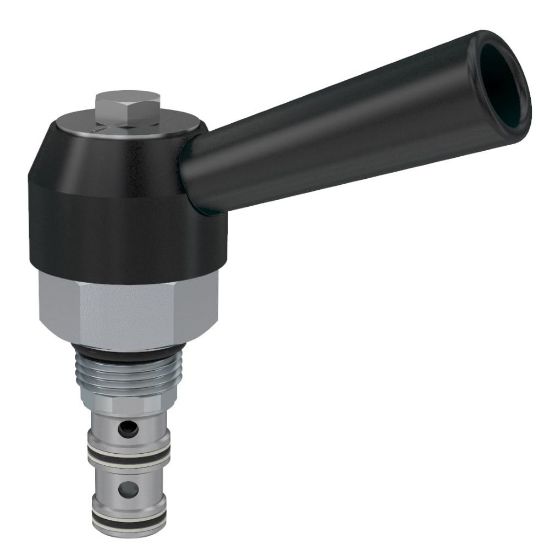

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

3 Way Rotary Type Manual Valve - DM103FKNV

Name: 3 Way Rotary Type Manual Valve - DM103FKNV
SKU: DM103FKNV
Availability: OutOfStock

REGIONAL - Parker’s manually operated 3-way, 2 or 3-position directional control spool valve is capable of flows up to 23 lpm (6 gpm) and pressures as high as 240 bar (3500 psi). Knob and lever actuators are available with detents.

Availability:

Backordered

SKU: DM103FKNV

Qty:

Products specifications

Attribute name	Attribute value
Weight	0.11 kg	Maximum Operating Pressure	240 bar
Operation Type	Manual	Seal Material	Fluorocarbon
Body Material	n/a	Minimum Operating Temperature	-26 °C
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Division	Hydraulic Systems Division
Installation Torque	22 Nm	Maximum Inlet Pressure Rating	3500 psi
Maximum Flow Rate	6 Gal/min	Flow Rate	6 Gal/min
Cavity Size	C10-3	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Maximum Operating Temperature	+204 °C	Operating Temperature	-26 to +204 °C
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Configuration	Finger Knob
Function	Spool Type	Leak Rate	164 @ 3500 PSI (240 BAR) cm3/min
Actuation Type	Rotary	Valve Material	Stem, stainless steel. All other parts hardened steel.
Maximum Tank Pressure	500 psi	Detents	3 position detent
Rotation Angle	45 °
Seal Material	Fluorocarbon	Configuration	Finger Knob
Detents	3 position detent
