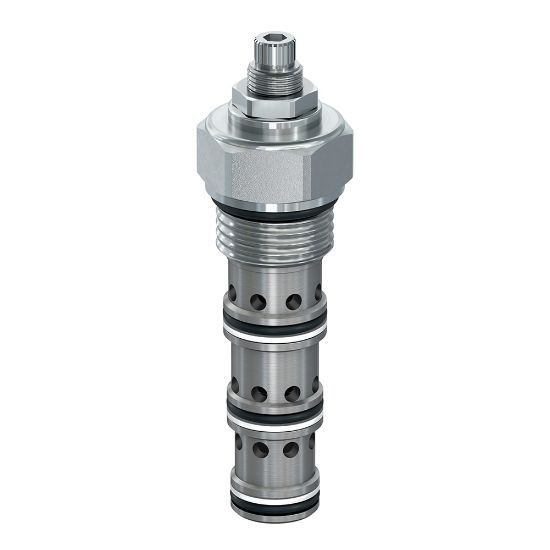

Priority Pressure Compensators - FCPH121FV

Name: Priority Pressure Compensators - FCPH121FV
SKU: FCPH121FV
Availability: OutOfStock

REGIONAL - Parker’s priority pressure compensators provide constant flow regardless of pressure changes via a fixed or adjustable orifice with priority to one outlet port at flows up to 95 lpm (25 gpm) and pressures up to 380 bar (5500 psi).

Availability:

Backordered

SKU: FCPH121FV

Qty:

Products specifications

Attribute name	Attribute value
Installation Torque	21 lb-ft	Maximum Inlet Pressure Rating	380 bar
Division	Hydraulic Cartridge Systems Division	Operating Temperature	-15 to +400 °F
Maximum Priority Flow	20 Gal/min	Maximum Flow Rate	25 Gal/min
Body Material	n/a	Function	Priority Pressure Compensators
Maximum Operating Pressure	380 bar	Maximum Operating Temperature	+204 °C
Adjustment Mechanism	Fixed	Weight	0.28 kg
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Seal Material	Fluorocarbon
Actuation Type	Pressure Compensation	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Flow Rate Accuracy	N/A	Flow Rate	95 L/min
Valve Material	All parts steel. All operating parts hardened steel	Cavity Size	C12-4
Pressure Differential	11 bar	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Division	Hydraulic Systems Division	Minimum Operating Temperature	-15 °F
Pressure Differential	160 PSI, 11 BAR	Maximum Flow Rate	25 GAL/MIN, 95 L/MIN
Maximum Priority Flow	20 GAL/MIN, 75 L/MIN	Seal Material	Fluorocarbon
