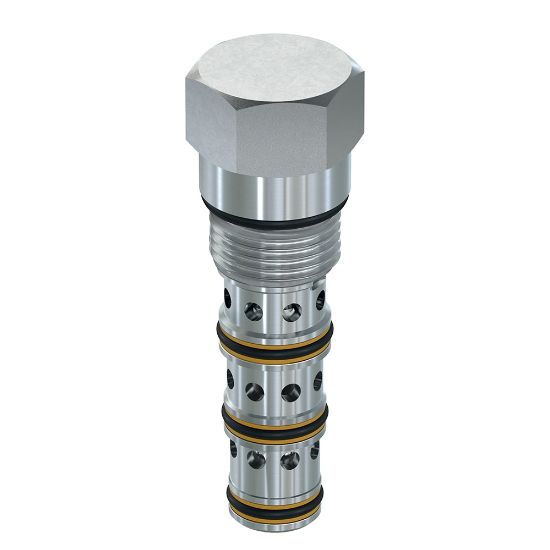

3 Way Pilot Operated Directional Control Valves - N04B4-10.0N

Name: 3 Way Pilot Operated Directional Control Valves - N04B4-10.0N
SKU: N04B4-10.0N
Availability: OutOfStock

3-way Pilot Operated, Threaded Cartridge Spool Valves used in normally closed or normally open directional control three way circuits requiring remote pilot actuation.

Availability:

Backordered

SKU: N04B4-10.0N

Qty:

Products specifications

Attribute name	Attribute value
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Pilot Location	External
Maximum Flow Rate	24 Gal/min	Drain Option	Internal
Sealed Pilot Included	No	Function	Directional Control
Seal Material	Nitrile	Operating Temperature	-34 to +121 °C
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Actuation Type	Pilot to shift
Flow Direction	2-3 Neutral, 3-4 Piloted	Body Material	n/a
Weight	0.17 kg	Switching Pressure	10 bar
Minimum Operating Temperature	-30 °F	Maximum Inlet Pressure Rating	420 bar
Flow Rate	24 Gal/min	Division	Mobile Hydraulic Systems Division Europe
Valve Material	All parts steel. All operating parts hardened steel	Leak Rate	55 @ 1450 PSI (100 BAR) cm3/min
Operation Type	Pilot Operated	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Installation Torque	50 Nm	Maximum Operating Pressure	6000 psi
Maximum Operating Temperature	+121 °C	Configuration	Selector
Cavity Size	C10-4	Standard Flow Rate Setting	13 Gal/min
Seal Material	Nitrile	Flow Direction	2-3 Neutral, 3-4 Piloted
Sealed Pilot Included	No	Flow Rate	24 GAL/MIN, 90 L/MIN
Configuration	Selector	Switching Pressure	145 PSI, 10 BAR
