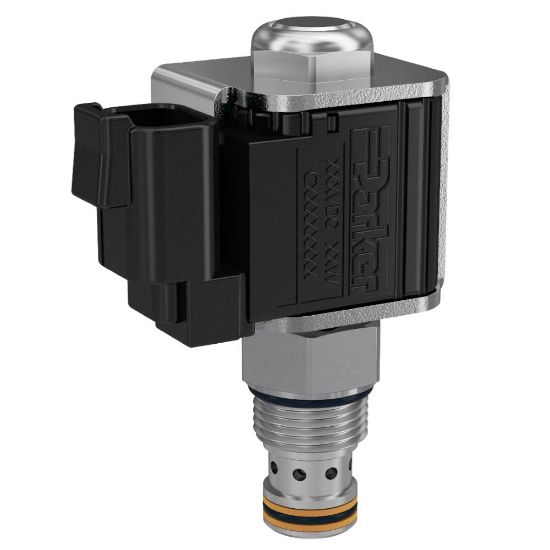

2 Way Spool Type Solenoid Valve - GS022210V

Name: 2 Way Spool Type Solenoid Valve - GS022210V
SKU: GS022210V
Availability: OutOfStock

Parker’s selection of direct acting 2-way, 2-position spool-type solenoid valves cover a wide range of flows up to 75 lpm (20 gpm) and pressures as high as 350 bar (5000 psi), with both normally-closed and normally-open options available.

Availability:

Backordered

SKU: GS022210V

Qty:

Products specifications

Attribute name	Attribute value
Function	2-way	Seal Material	Fluorocarbon
Body Material	n/a	Maximum Operating Pressure	5000 psi
Minimum Operating Temperature	-15 °F	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Division	Hydraulic Systems Division	Maximum Flow Rate	5 Gal/min
Flow Rate	19 L/min	Maximum Inlet Pressure Rating	5000 psi
Weight	0.14 lb	Installation Torque	22 lb-ft
Coil Nut Tightening Torque	3 lb-ft	Cavity Size	C09-2
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Maximum Operating Temperature	+400 °F
Configuration	Normally Closed	Actuation Type	Electrical, Manual
Operation Type	Solenoid operated, Manually operated	Valve Material	All parts steel. All operating parts hardened steel
Operating Temperature	-26 to +204 °C	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Wire Mesh Screen Included	No	Mounting Type	Screw in cartridge valve
Coil Type	1/2" Super Coil	Input Voltage	85% of rated voltage at 72°F (20°C) min
Response Time	50 ms	Leak Rate	82 CC/min @ 3000 PSI (210 BAR) cm3/min
Override Functionality	Non-Detetented
Seal Material	Fluorocarbon	Configuration	Normally Closed
Maximum Inlet Pressure Rating	5000 PSI, 350 BAR	Flow Rate	5 GAL/MIN, 19 L/MIN
Actuation Type	Electrical, Manual	Wire Mesh Screen Included	No
