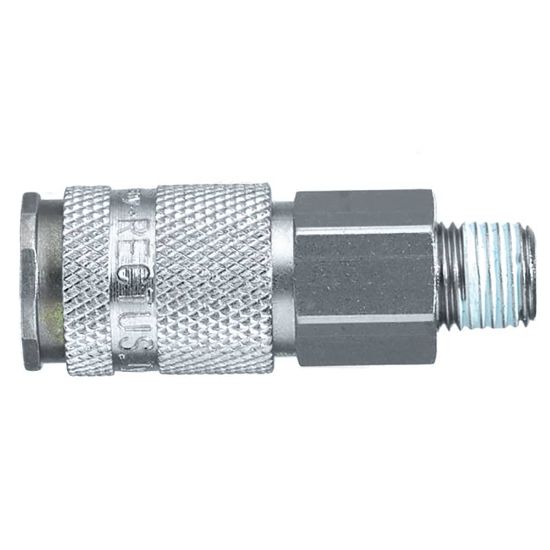

Quick Coupling with Atlas Copco Profile, Series 33 - 33KAAK17SPN

Name: Quick Coupling with Atlas Copco Profile, Series 33 - 33KAAK17SPN
SKU: 33KAAK17SPN
Availability: OutOfStock

Quick coupling system with nominal diameter 8 for pneumatic and fluid handling applications up to 35 bar. Coupling system with Atlas Copco profile. Available made of brass/steel.

Availability:

Backordered

SKU: 33KAAK17SPN

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Maximum Operating Temperature	100 °C
Minimum Operating Temperature	-20 °C	Seal Material	NBR
Maximum Operating Pressure	35 bar	Version	Single Shut-Off
Valve Included	Yes	Outside Diameter	23 mm
Length	59 mm	Hex Size	19 mm
Materials of Construction	Steel nickel plated	Diameter	8 nom
Flow Rate	1400 L/min
Type	Coupling	Hose I.D.	na
Connection Thread Size (inch)	3/8	Connection Type	Male Thread - tapered
