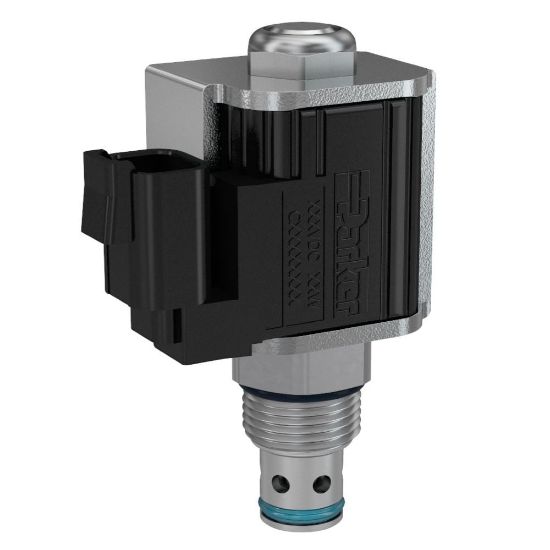

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

2 Way Poppet Type Solenoid Valve - DSL101C

Parker's 2-way poppet solenoid valves check flow in one direction with very low leakage and free flow opposite; normally-open or normally-closed configurations available. Capable of pressures up to 350 bar (5000 psi) and flows up to 260 lpm (70 gpm).

Availability:	4 in stock
Partner Available:	170 in stock

SKU: DSL101C

$58.50

Products specifications

Attribute name	Attribute value
Flow Rate	60 L/min	Function	2-way
Body Material	n/a	Maximum Flow Rate	15 Gal/min
Minimum Operating Temperature	-35 °F	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Division	Hydraulic Systems Division	Flow Direction	Side to Nose (2-1)
Maximum Operating Temperature	+200 °F	Maximum Operating Pressure	3600 psi
Override Functionality	n/a	Weight	0.41 lb
Cavity Size	C10-2	Seal Material	D-Ring (Standard)
Actuation Type	Electrical	Operation Type	Solenoid Operated
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Configuration	Normally Closed
Valve Material	All parts steel. All operating parts hardened steel	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Wire Mesh Screen Included	No	Mounting Type	Screw in cartridge valve
Operating Temperature	-37 to +93 °C	Leak Rate	5 drops/min
Input Voltage	85% of rated voltage at 72°F (20°C) min	Coil Nut Tightening Torque	5-7 lb-ft
Adjustment Mechanism	N/A	Free Reverse Flow	No
Coil Type	5/8" Super Coil	Response Time	80 ms
Maximum Inlet Pressure Rating	3600 psi	Installation Torque	37-41 lb-ft
Configuration	Normally Closed	Seal Material	D-Ring (Standard)
Actuation Type	Electrical	Wire Mesh Screen Included	No
Flow Rate	15 GAL/MIN, 60 L/MIN	Maximum Inlet Pressure Rating	3600 PSI, 250 BAR
