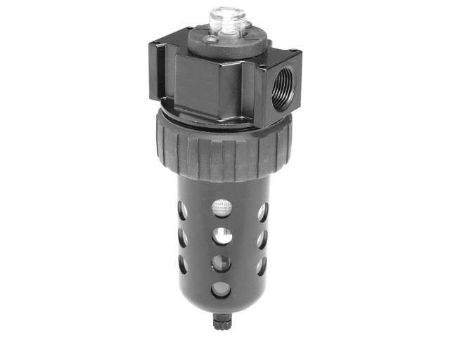

12F Standard General Industrial Coalescing Filter - 12F32E

Name: 12F Standard General Industrial Coalescing Filter - 12F32E
SKU: 12F32E
Availability: OutOfStock

12F Standard Prep-Air II Coalescing Filter

Availability:

Backordered

SKU: 12F32E

Qty:

Products specifications

Attribute name	Attribute value
Port	1/2 NPT	Operating Temperature	0°C to 52°C (32°F to 125°F)
Filter Drain Type	Manual	Pkg Qty	1
Supply Pressure Range	0 to 150 PSIG (0 to 10.3 bar)	Maximum Flow	75 SCFM (35 dm3/s)
UOM	EA	Bowl Type	Poly with bowl guard
Element Rating	0.01 micron
Supply Pressure Range	0 to 150 PSIG (0 to 10.3 bar)	Operating Temperature	0°C to 52°C (32°F to 125°F)
Element Rating	0.01 micron	Port	1/2 NPT
Air Preparation Series	General Industrial	Parker Group	Automation
Port Inch/BSP	NPT	Parker Division	Pneumatic
Series	12F Standard	Trade Name	Prep-Air II
Air Preparation Product Type	Coalescing Filter	Flow Range	25 - 75 SCFM
Bowl Type	Poly with bowl guard	Filter Drain Type	Manual
