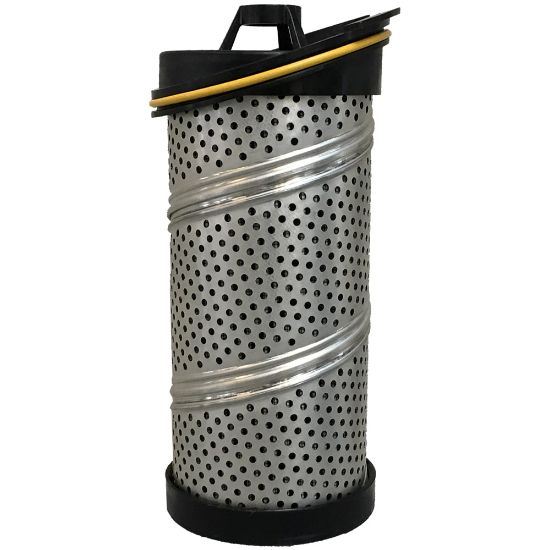

Tank Top Return Line Hydraulic Filter Replacement Elements – iProtect® GLF Series - 944836Q

Name: Tank Top Return Line Hydraulic Filter Replacement Elements – iProtect® GLF Series - 944836Q
SKU: 944836Q
Availability: OutOfStock

Parker GLF Series Replacement Elements are designed for use with GLF Series Tank Top Return Line Hydraulic Filters. The elements combine high efficiency filtration with low cost installation and are available with ratings ranging from 2 - 20 microns.

Availability:

Backordered

SKU: 944836Q

Qty:

Products specifications

Attribute name	Attribute value
Filter Type	Tanktop Return Line	Specifications Met	Degree of filtration determined by multipass test according to ISO 16889.
Technology	Filtration	Application	• Deck and mobile cranes<br/>• Firefighting equipment<br/>• Forwarders<br/>• Hydraulic presses<br/>• Marine steering units<br/>• Power packs<br/>• Waste management, dump and fork lift trucks<br/>• Excavators<br/>Harvesters<br/>• Waste b
Industry	• Agriculture<br/>• Construction<br/>• Oil and Gas<br/>• Marine<br/>• Mining<br/>• Forestry<br/>• Power	Division	Hydraulic & Industrial Process Filtration Division EMEA
Flow Rate	0 to 1700 L/min	Operating Temperature	-40 to 100 °C
Operating Pressure	150 psi	Filter Element Type	Quantumfiber™
Product Type	Hydraulic Oil Filter	Product Series	iProtect® GLF Series Replacement Elements
Division	Hydraulic & Industrial Process Filtration Division EMEA	For Fluid Type	Hydraulic Oil
Brand	Parker
Length	Length 1	Micron Rating	20 µm
Seal Material	Nitrile	For Use With	GLF size 1
Bypass Valve Pressure Rating	1.7 bar
