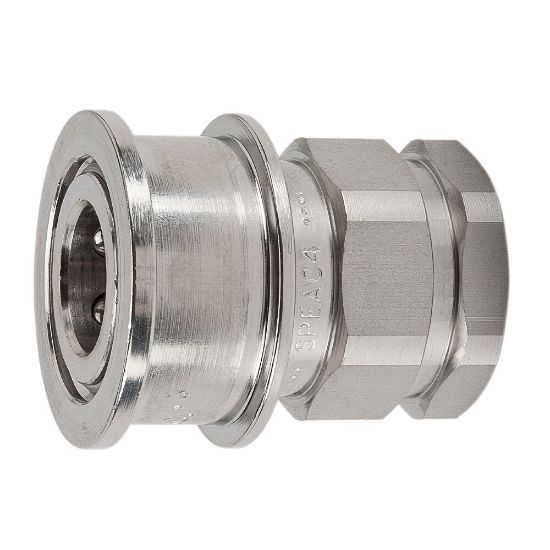

Vacuum and Medium Pressure Quick Couplings - EA Series - SVEAC4-4RPV

Name: Vacuum and Medium Pressure Quick Couplings - EA Series - SVEAC4-4RPV
SKU: SVEAC4-4RPV
Availability: OutOfStock

Parker's multi-purpose quick couplers and nipples are ideal for use in vacuum and medium pressure applications where fluid or gas lines require fast and easy connection and disconnection.

Availability:

Backordered

SKU: SVEAC4-4RPV

Qty:

Products specifications

Attribute name	Attribute value
Minimum Operating Temperature	-40 °F	Division	Quick Coupling Division
Maximum Operating Temperature	250 °F	Product Type	Manual Connect
Valve Type	Poppet	Hex Size	0.88 inch
Plating Type	na	Vacuum Pressure Rating	29.7 Inch-Hg
Application	Vacuum and medium pressure hydraulics	Seal Material	FKM (Vit)
Body Material	316 Stainless Steel	Body Size (inch)	1/4
Connection Thread Size (inch)	1/4 - 18	Coupling Half	Female Coupler
Connection Type	Female BSPP	Maximum Operating Pressure	3000
