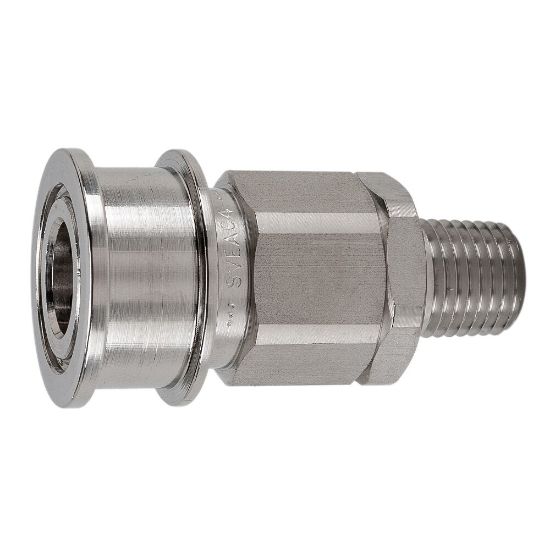

Vacuum and Medium Pressure Quick Couplings - EA Series - SPEAC4-4M

Name: Vacuum and Medium Pressure Quick Couplings - EA Series - SPEAC4-4M
SKU: SPEAC4-4M
Availability: OutOfStock

Parker's multi-purpose quick couplers and nipples are ideal for use in vacuum and medium pressure applications where fluid or gas lines require fast and easy connection and disconnection.

Availability:

Backordered

SKU: SPEAC4-4M

Qty:

Products specifications

Attribute name	Attribute value
Product Type	Manual Connect	Application	Vacuum and medium pressure hydraulics
Maximum Operating Temperature	250 °F	Hex Size	0.88 inch
Minimum Operating Temperature	-40 °F	Valve Type	Unvalved
Plating Type	na	Vacuum Pressure Rating	29.7 Inch-Hg
Division	Quick Coupling Division	Seal Material	Nitrile
Maximum Operating Pressure	3000	Body Material	316 Stainless Steel
Coupling Half	Female Coupler	Connection Type	Male NPSF
Body Size (inch)	1/4	Connection Thread Size (inch)	1/4 - 18

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories

Literature and Reference Materials
