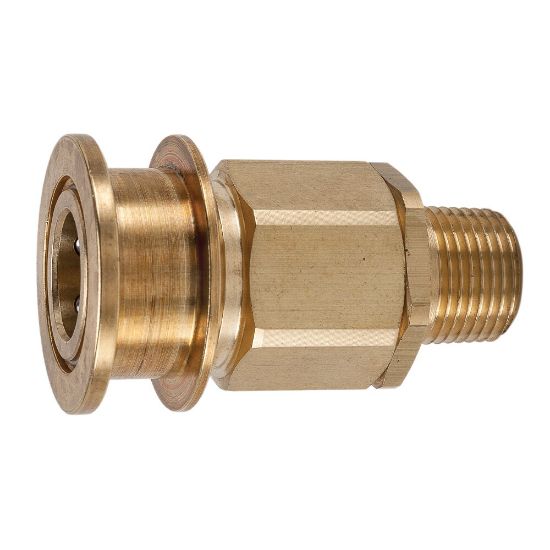

Vacuum and Medium Pressure Quick Couplings - EA Series - BVEAC12-12M

Name: Vacuum and Medium Pressure Quick Couplings - EA Series - BVEAC12-12M
SKU: BVEAC12-12M
Availability: OutOfStock

Parker's multi-purpose quick couplers and nipples are ideal for use in vacuum and medium pressure applications where fluid or gas lines require fast and easy connection and disconnection.

Availability:

Backordered

SKU: BVEAC12-12M

Qty:

Products specifications

Attribute name	Attribute value
Minimum Operating Temperature	-40 °F	Seal Material	Nitrile
Division	Quick Coupling Division	Maximum Operating Temperature	250 °F
Product Type	Manual Connect	Hex Size	1.5 inch
Valve Type	Poppet	Plating Type	na
Vacuum Pressure Rating	29.7 Inch-Hg	Application	Vacuum and medium pressure hydraulics
Body Material	BRASS	Connection Type	Male NPTF
Coupling Half	Female Coupler	Connection Thread Size (inch)	3/4 - 14
Body Size (inch)	3/4	Maximum Operating Pressure	1500

California Residents: Prop-65 Warning

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories
