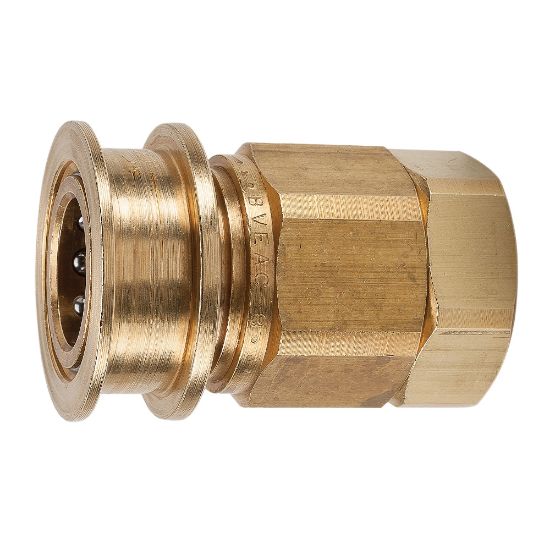

Vacuum and Medium Pressure Quick Couplings - EA Series - BPEAC12-12F

Name: Vacuum and Medium Pressure Quick Couplings - EA Series - BPEAC12-12F
SKU: BPEAC12-12F
Availability: OutOfStock

Parker's multi-purpose quick couplers and nipples are ideal for use in vacuum and medium pressure applications where fluid or gas lines require fast and easy connection and disconnection.

Availability:

Backordered

SKU: BPEAC12-12F

Qty:

Products specifications

Attribute name	Attribute value
Division	Quick Coupling Division	Vacuum Pressure Rating	29.7 Inch-Hg
Seal Material	Nitrile	Hex Size	1.5 inch
Maximum Operating Temperature	250 °F	Product Type	Manual Connect
Application	Vacuum and medium pressure hydraulics	Valve Type	Unvalved
Minimum Operating Temperature	-40 °F	Plating Type	na
Coupling Half	Female Coupler	Connection Type	Female NPTF
Body Size (inch)	3/4	Connection Thread Size (inch)	3/4 - 14
Maximum Operating Pressure	1500	Body Material	BRASS

California Residents: Prop-65 Warning

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories

Literature and Reference Materials
