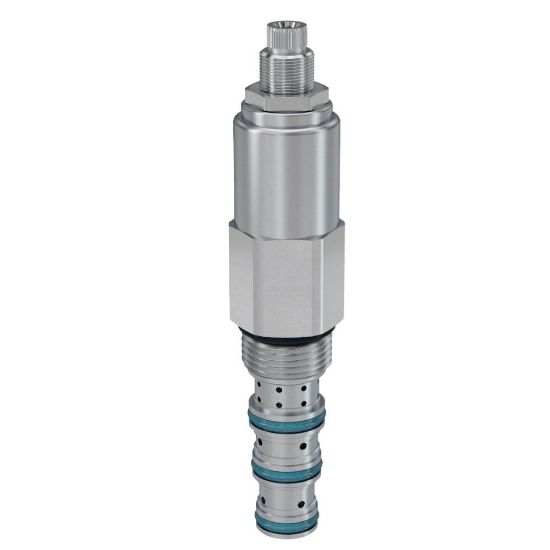

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Unloading Relief Valves - RU104S36B

Name: Unloading Relief Valves - RU104S36B
SKU: RU104S36B
Availability: OutOfStock

Parker’s unloading pressure control valves automatically charge and maintain a specific pressure range within accumulators by loading and unloading pump flow. Usable with fixed or variable pumps and pressure of 420 bar (6000 psi) and flow up to 1 gpm.

Availability:

Backordered

SKU: RU104S36B

Qty:

Products specifications

Attribute name	Attribute value
Pressure Control Range	120.7-250 bar	Actuation Type	Pressure Sensing
Division	Hydraulic Cartridge Systems Division	Body Material	n/a
Standard Setting Pressure	2675 psi	Flow Rate	0.25 Gal/min
Minimum Operating Temperature	-37 °C	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Division	Hydraulic Systems Division	Valve Material	All parts steel. All operating parts hardened steel
Maximum Inlet Pressure Rating	250 bar	Adjustment Mechanism	Screw
Cavity Size	C10-4	Maximum Pressure Setting	3600 psi
Installation Torque	50-56 Nm	Function	Unloading Relief Valve
Leak Rate	48 @ 3000 PSI (250 BAR) cm3/min	Maximum Operating Temperature	+93 °C
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Weight	1 kg
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Maximum Tank Pressure	3000 psi
Maximum Operating Pressure	250 bar	Operating Temperature	-37 to +93 °C
Seal Material	D-Ring (Standard)	Maximum Flow Rate	0.25 Gal/min
Pressure Control Range	1750-3600 PSI, 120.7-250 BAR	Seal Material	D-Ring (Standard)
Adjustment Mechanism	Screw	Maximum Flow Rate	0.25 GAL/MIN, 1 L/MIN
