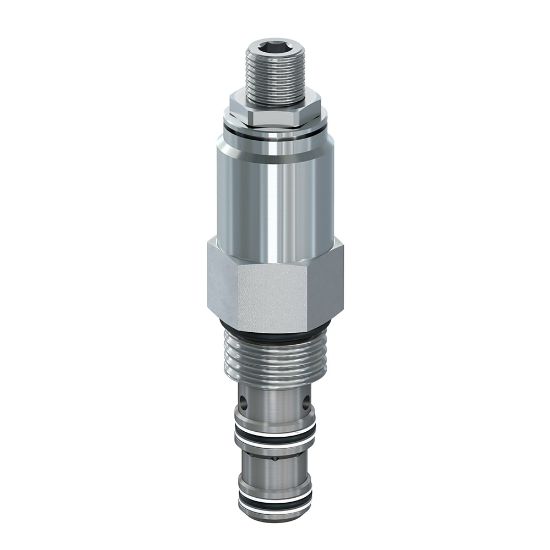

Unloading Relief Valves - RU101K10CV

Name: Unloading Relief Valves - RU101K10CV
SKU: RU101K10CV
Availability: OutOfStock

Parker’s unloading pressure control valves automatically charge and maintain a specific pressure range within accumulators by loading and unloading pump flow. Usable with fixed or variable pumps and pressure of 420 bar (6000 psi) and flow up to 1 gpm.

Availability:

Backordered

SKU: RU101K10CV

Qty:

Products specifications

Attribute name	Attribute value
Function	Unloading Relief Valve	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Standard Setting Pressure	34.5 bar	Seal Material	Fluorocarbon
Maximum Operating Pressure	245 bar	Installation Torque	16 lb-ft
Maximum Tank Pressure	3000 psi	Maximum Operating Temperature	+400 °F
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Maximum Inlet Pressure Rating	245 bar
Adjustment Mechanism	Knob	Actuation Type	Pressure Sensing
Flow Rate	1 Gal/min	Weight	0.23 kg
Pressure Control Range	100-1000 psi	Body Material	n/a
Division	Hydraulic Cartridge Systems Division	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Minimum Operating Temperature	-15 °F	Division	Hydraulic Systems Division
Leak Rate	10 (port 2 to 3), 60 (port 1 to 2) drops/min	Maximum Pressure Setting	69 bar
Valve Material	All parts steel. All operating parts hardened steel	Maximum Flow Rate	3.75 L/min
Operating Temperature	-26 to +204 °C	Cavity Size	C10-3
Pressure Control Range	100-1000 PSI, 6.9-69 BAR	Adjustment Mechanism	Knob
Maximum Flow Rate	1 GAL/MIN, 3.75 L/MIN	Seal Material	Fluorocarbon
