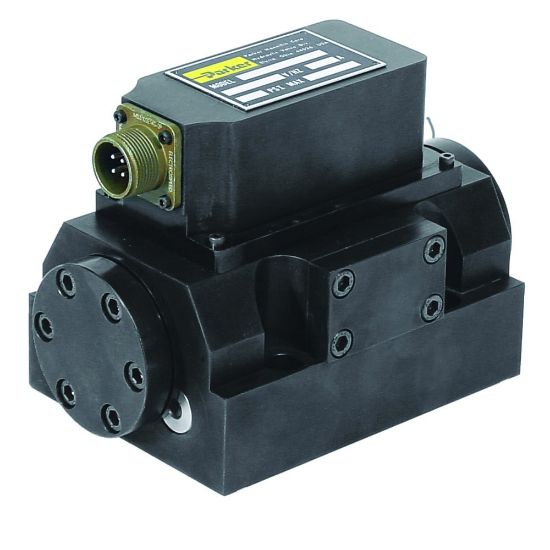

Two-stage, 4 way, Flapper and Nozzle Servovalve - SE60 Series - SE60SAAHANA25

Name: Two-stage, 4 way, Flapper and Nozzle Servovalve - SE60 Series - SE60SAAHANA25
SKU: SE60SAAHANA25
Availability: OutOfStock

Parker’s SE60 series valve is a two stage, 4-way, flapper and nozzle style servovalve.

Availability:

Backordered

SKU: SE60SAAHANA25

Qty:

Products specifications

Attribute name	Attribute value
Signal Input	Standard	Connection Type	Port C1, (+) signal to A, C
Body Material	Aluminum	Maximum Operating Pressure	3000 psi
Valve Type	Servovalve	Division	Hydraulic Valve Systems Division
Actuation Type	Hydraulic Pressure	Weight	7.5 lb
Mounting Type	2.00in; 50.8mm	Additional Options	Consult Catalog for Additional Features
Seal Material	Nitrile	Maximum Flow Rate	95 L/min
Materials of Construction	Aluminum	Pilot Port Type	Internal
Resistance	200 Ohms; 15 mA (Parallel); 7.5 mA (Series) ohm-cm	Minimum Operating Temperature	-4 °F
Maximum Operating Temperature	+140 °F
Resistance (Ohms)	200 Ohms; 15 mA (Parallel); 7.5 mA (Series)	Maximum Operating Pressure	3000 PSI
Size	2.00in; 50.8mm	Flow Rate (gpm)	25
