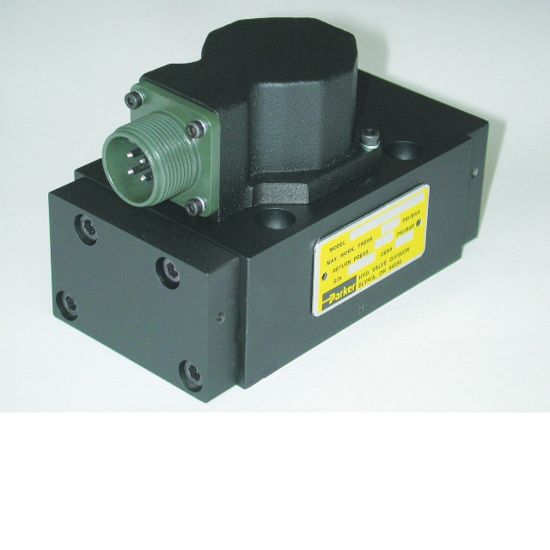

Two-stage, 4 way, Flapper and Nozzle Servovalve - SE31 Series - SE31SAAHBNA15

Name: Two-stage, 4 way, Flapper and Nozzle Servovalve - SE31 Series - SE31SAAHBNA15
SKU: SE31SAAHBNA15
Availability: OutOfStock

Parker’s SE31 series valve is a two stage, 4-way, flapper and nozzle style servovalve and is designed to fit onto DIN NG10 or NFPA D05 port patterns.

Availability:

Backordered

SKU: SE31SAAHBNA15

Qty:

Products specifications

Attribute name	Attribute value
Body Material	Aluminum	Mounting Type	D05HE (no Y port)
Actuation Type	Hydraulic Pressure	Connection Type	Port C2; (+) signal to A, C
Valve Type	Servovalve	Division	Hydraulic Valve Systems Division
Maximum Flow Rate	15 Gal/min	Pilot Port Type	Internal
Additional Options	Consult Catalog for Additional Features	Seal Material	Nitrile
Resistance	200 Ohms; 15 mA (Parallel); 7.5 mA (Series) ohm-cm	Weight	2.4 lb
Maximum Operating Pressure	210 bar	Maximum Operating Temperature	+140 °F
Minimum Operating Temperature	-4 °F	Signal Input	Standard
Maximum Operating Pressure	3000 PSI	Mounting Type	D05HE (no Y port)
Flow Rate (gpm)	15
