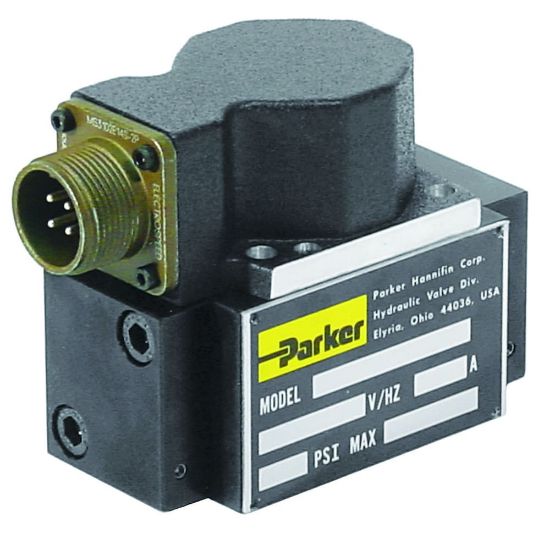

Two-stage, 4-way, Flapper and Nozzle Servovalve - SE05/SE10/SE15 & SE2N Series - SE05HAAABVA2.5

Name: Two-stage, 4-way, Flapper and Nozzle Servovalve - SE05/SE10/SE15 & SE2N Series - SE05HAAABVA2.5
SKU: SE05HAAABVA2.5
Availability: OutOfStock

Parker’s SE05, SE10, SE15 & SE2N series valves are two stage, 4-way, flapper and nozzle style servovalves.

Availability:

Backordered

SKU: SE05HAAABVA2.5

Qty:

Products specifications

Attribute name	Attribute value
Materials of Construction	Aluminum	Seal Material	Fluorocarbon
Resistance	40 Ohms; 60 mA (Parallel); 30mA (Series) ohm-cm	Operating Pressure	209 bar
Response Time	High	Maximum Operating Pressure	3000 psi
Body Material	Aluminum	Actuation Type	Hydraulic Pressure
Minimum Operating Temperature	-22 °F	Maximum Operating Temperature	+266 °F
Division	Hydraulic Valve Systems Division	Product Style	Servovalve
Maximum Flow Rate	10 L/min	Weight	1 kg
Additional Options	Consult Catalog for Additional Features
Flow Rate (gpm)	2.5	Mounting	0.625in; 15.8mm
Maximum Operating Pressure	3000 PSI	Size	15.88 mm
