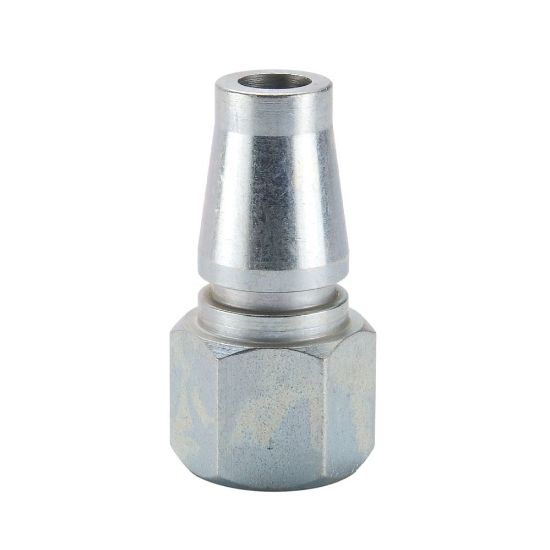

Twist Lock Schrader Interchange, Quick Connect Air Couplings - TL Series - TL-504-6FP

Parker's twist lock interchange pneumatic, quick connect air couplers and nipples are ideal for use across a spectrum of applications where low pressure air or fluid lines require fast and easy connection and disconnection.

Availability:	6 in stock
Partner Available:	23 in stock

SKU: TL-504-6FP

$12.86

Products specifications

Attribute name	Attribute value
Product Type	Push to Connect	Maximum Operating Pressure	300 psi
Body Material	Steel	Maximum Operating Temperature	250 °F
Minimum Operating Temperature	-40 °F	Hex Size	0.81 inch
Plating Type	Zinc with clear trivalent chromate	Division	Quick Coupling Division
Application	Pneumatic	Interchange Type	Schrader Twist Lock
Connection Type	Female NPTF	Hose I.D. (inch)	na
Body Size (inch)	1/2	Coupling Half	Male Nipple
Connection Thread Size (inch)	3/8 - 18	Valve Type	Unvalved
