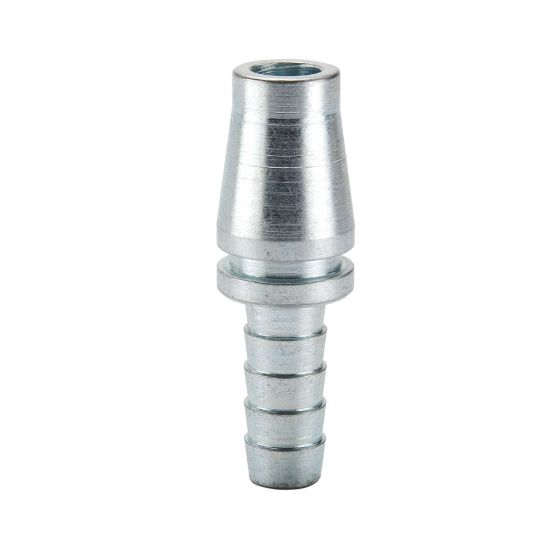

Twist Lock Schrader Interchange, Quick Connect Air Couplings - TL Series - TL-504-4HB

Parker's twist lock interchange pneumatic, quick connect air couplers and nipples are ideal for use across a spectrum of applications where low pressure air or fluid lines require fast and easy connection and disconnection.

Availability:	Backordered
Partner Available:	10 in stock

SKU: TL-504-4HB

$13.89

Products specifications

Attribute name	Attribute value
Body Material	Steel	Maximum Operating Temperature	250 °F
Minimum Operating Temperature	-40 °F	Plating Type	Zinc with clear trivalent chromate
Division	Quick Coupling Division	Application	Pneumatic
Interchange Type	Schrader Twist Lock	Product Type	Push to Connect
Maximum Operating Pressure	300 psi
Coupling Half	Male Nipple	Connection Thread Size (inch)	na
Connection Type	Hose Barb	Valve Type	Unvalved
Body Size (inch)	1/2	Hose I.D. (inch)	1/4

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories
