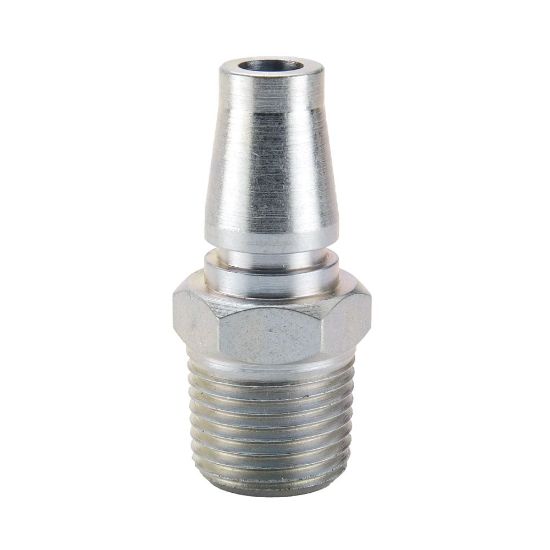

Twist Lock Schrader Interchange, Quick Connect Air Couplings - TL Series - TL-504-12MP

Parker's twist lock interchange pneumatic, quick connect air couplers and nipples are ideal for use across a spectrum of applications where low pressure air or fluid lines require fast and easy connection and disconnection.

Availability:	Backordered
Partner Available:	Backordered

SKU: TL-504-12MP

$25.13

Products specifications

Attribute name	Attribute value
Maximum Operating Temperature	250 °F	Minimum Operating Temperature	-40 °F
Hex Size	1.06 inch	Plating Type	Zinc with clear trivalent chromate
Division	Quick Coupling Division	Interchange Type	Schrader Twist Lock
Maximum Operating Pressure	300 psi	Application	Pneumatic
Product Type	Push to Connect	Body Material	Steel
Connection Thread Size (inch)	3/4 - 14	Connection Type	Male NPTF
Hose I.D. (inch)	na	Valve Type	Unvalved
Body Size (inch)	1/2	Coupling Half	Male Nipple

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories
