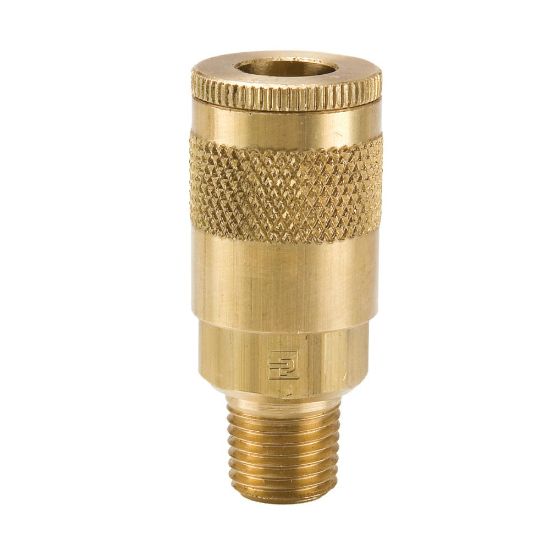

Tru-Flate, Automotive Interchange Quick Connect Air Couplings - 10 Series - B12A

Parker's general purpose Tru-Flate pneumatic, quick connect air couplers and nipples are ideal for use across a spectrum of applications where low pressure air or fluid lines require fast and easy connection and disconnection.

Availability:	Backordered
Partner Available:	15 in stock

SKU: B12A

$25.35

Products specifications

Attribute name	Attribute value
Minimum Operating Temperature	-40 °F	Seal Material	Nitrile
Division	Quick Coupling Division	Hex Size	0.75 inch
Maximum Operating Pressure	300 psi	Maximum Operating Temperature	250 °F
Product Type	Manual Connect	Application	Pneumatic
Interchange Type	Tru-Flate design	Valve Type	Tubular
Dimensional Weight	0.02670863309352518 lb	Plating Type	na
Body Material	BRASS	Body Size (inch)	1/4
Connection Type	Male NPTF	Hose I.D. (inch)	na
Connection Thread Size (inch)	1/8 - 27	Coupling Half	Female Coupler
