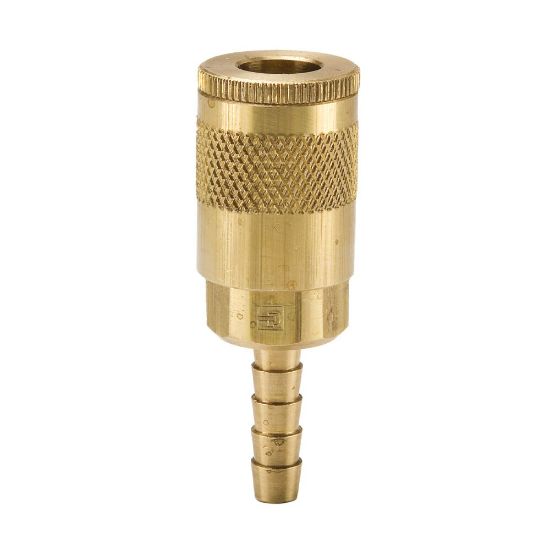

Tru-Flate, Automotive Interchange Quick Connect Air Couplings - 10 Series - B10-5B

Parker's general purpose Tru-Flate pneumatic, quick connect air couplers and nipples are ideal for use across a spectrum of applications where low pressure air or fluid lines require fast and easy connection and disconnection.

Availability:	Backordered
Partner Available:	160 in stock

SKU: B10-5B

$27.06

Products specifications

Attribute name	Attribute value
Minimum Operating Temperature	-40 °F	Seal Material	Nitrile
Division	Quick Coupling Division	Maximum Operating Pressure	300 psi
Maximum Operating Temperature	250 °F	Product Type	Manual Connect
Application	Pneumatic	Interchange Type	Tru-Flate design
Valve Type	Tubular	Hex Size	na inch
Dimensional Weight	0.026658673061550762 lb	Plating Type	na
Body Material	BRASS	Connection Type	Hose Barb
Hose I.D. (inch)	3/8	Body Size (inch)	1/4
Connection Thread Size (inch)	na	Coupling Half	Female Coupler

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories
