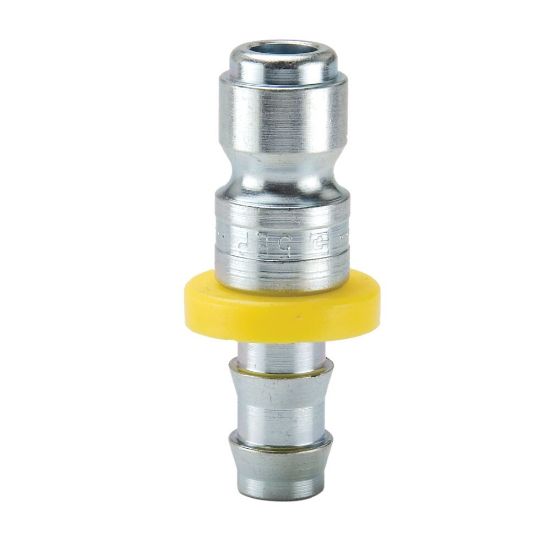

Tru-Flate, Automotive Interchange Quick Connect Air Couplings - 10 Series - 5EP

Parker's general purpose Tru-Flate pneumatic, quick connect air couplers and nipples are ideal for use across a spectrum of applications where low pressure air or fluid lines require fast and easy connection and disconnection.

Availability:	2 in stock
Partner Available:	186 in stock

SKU: 5EP

$12.86

Qty:

Products specifications

Attribute name	Attribute value
Application	Pneumatic	Maximum Operating Pressure	300 psi
Hex Size	na inch	Plating Type	Zinc with clear trivalent chromate
Dimensional Weight	0.01335431654676259 lb	Division	Quick Coupling Division
Interchange Type	Tru-Flate design	Product Type	Manual Connect
Maximum Operating Temperature	250 °F	Minimum Operating Temperature	-40 °F
Valve Type	Unvalved
Coupling Half	Male Nipple	Body Size (inch)	3/8
Connection Type	Push-Lok hose barb	Connection Thread Size (inch)	na
Hose I.D. (inch)	3/8	Body Material	Steel

California Residents: Prop-65 Warning

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories
