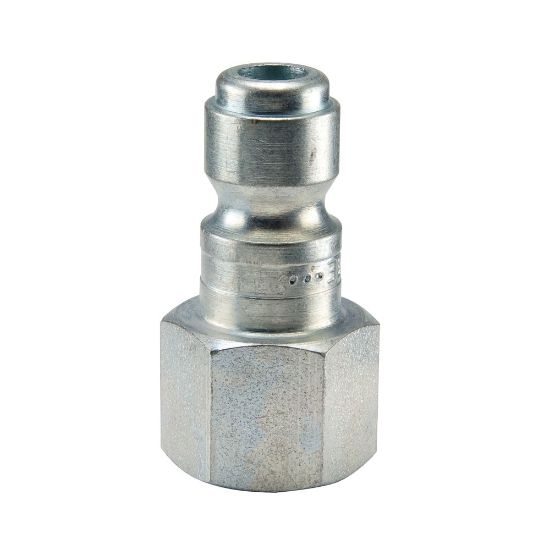

Tru-Flate, Automotive Interchange Quick Connect Air Couplings - 10 Series - 3C

Parker's general purpose Tru-Flate pneumatic, quick connect air couplers and nipples are ideal for use across a spectrum of applications where low pressure air or fluid lines require fast and easy connection and disconnection.

Availability:	72 in stock
Partner Available:	924 in stock

SKU: 3C

$4.74

Qty:

Products specifications

Attribute name	Attribute value
Minimum Operating Temperature	-40 °F	Division	Quick Coupling Division
Maximum Operating Pressure	300 psi	Maximum Operating Temperature	250 °F
Product Type	Manual Connect	Hex Size	0.62 inch
Valve Type	Unvalved	Application	Pneumatic
Plating Type	Zinc with clear trivalent chromate	Interchange Type	Tru-Flate design
Dimensional Weight	0.013329336530775381 lb
Body Material	Steel	Coupling Half	Male Nipple
Body Size (inch)	1/4	Hose I.D. (inch)	na
Connection Thread Size (inch)	1/4 - 18	Connection Type	Female NPTF
