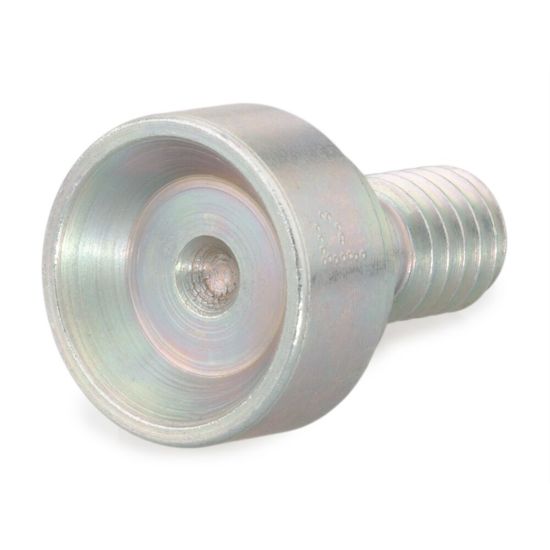

Triple-Lok® 37° Flare JIC Tube Fittings and Adapters - 8 T22X-S

Parker Triple-Lok 37° Flare JIC Tube Fittings and Adapters are a reliable leak-free metal to metal connection solution for most high pressure hydraulic applications.

Availability:	Backordered
Partner Available:	78 in stock

SKU: 8 T22X-S

$9.29

Products specifications

Attribute name	Attribute value
Connection 3 Size	na	Dimensional Weight	0.039568345323741004 lb
Connection 3 Tube Outside Diameter	na	Connection 2 Size	Male Bolt Threads
Connection 3 Thread Size	na	Body Material	Steel
Connection 4 Size	na	Maximum Dynamic Pressure	6000 psi
Division	Tube Fittings Division	Connection 4 Tube Outside Diameter	na
Connection 1 Tube Outside Diameter	1/2 inch	Connection Type	37° Flare
Connection 2 Thread Size	na	Specifications Met	SAE J514
O-Ring Material	na	Connection 2 Tube Outside Diameter	na
Shape	Cap	Connection 1 Size	Female 37° Flare

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382868TA-Triple-Lok
