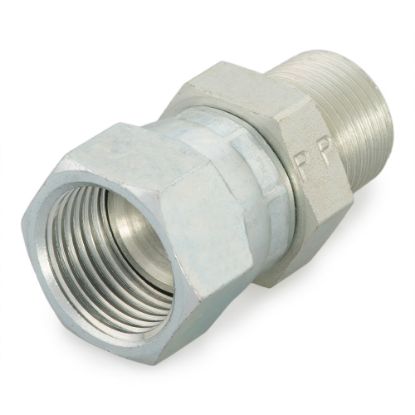

Triple-Lok® 37° Flare JIC Tube Fittings and Adapters - 8 C6X-S

Parker Triple-Lok 37° Flare JIC Tube Fittings and Adapters are a reliable leak-free metal to metal connection solution for most high pressure hydraulic applications.

Availability:	375 in stock
Partner Available:	3472 in stock

SKU: 8 C6X-S

$13.24

Products specifications

Attribute name	Attribute value
Connection 3 Size	na	Connection 2 Size	Female 37° Flare Swivel
Connection 3 Tube Outside Diameter	na	Dimensional Weight	0.044059127697841725 lb
Body Material	Steel	Shape	90° Elbow
Division	Tube Fittings Division	Connection 3 Thread Size	na
Connection 2 Tube Outside Diameter	12 mm	Connection 4 Size	na
Maximum Dynamic Pressure	6000 psi	Connection Type	37° Flare
Connection 4 Tube Outside Diameter	na	Connection 2 Thread Size	na
Specifications Met	SAE J514	O-Ring Material	na
Connection 1 Size	Male 37° Flare	Connection 1 Tube Outside Diameter	12 mm
