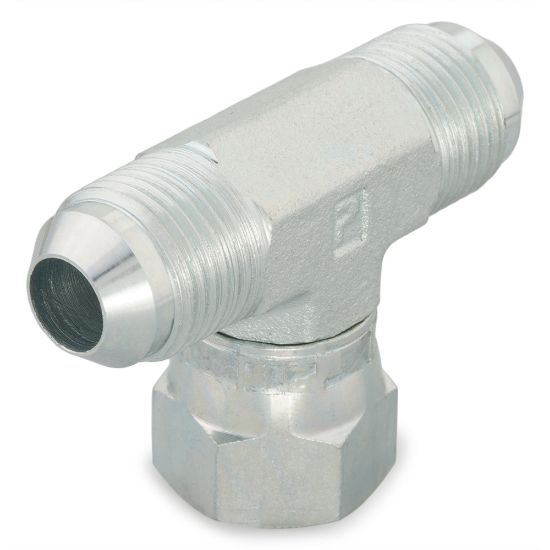

Triple-Lok® 37° Flare JIC Tube Fittings and Adapters - 6 S6X-S

Parker Triple-Lok 37° Flare JIC Tube Fittings and Adapters are a reliable leak-free metal to metal connection solution for most high pressure hydraulic applications.

Availability:	44 in stock
Partner Available:	795 in stock

SKU: 6 S6X-S

$13.65

Products specifications

Attribute name	Attribute value
Connection 2 Tube Outside Diameter	10 mm	Connection 1 Size	Male 37° Flare
Specifications Met	SAE J514	Connection 2 Thread Size	na
O-Ring Material	na	Division	Tube Fittings Division
Connection 3 Size	Female 37° Flare Swivel	Connection 3 Thread Size	na
Connection 4 Size	na	Maximum Dynamic Pressure	6000 psi
Connection 2 Size	Male 37° Flare	Connection 4 Tube Outside Diameter	na
Connection Type	37° Flare	Connection 3 Tube Outside Diameter	10 mm
Dimensional Weight	0.04060251798561151 lb	Shape	Tee
Body Material	Steel	Connection 1 Tube Outside Diameter	3/8 inch
