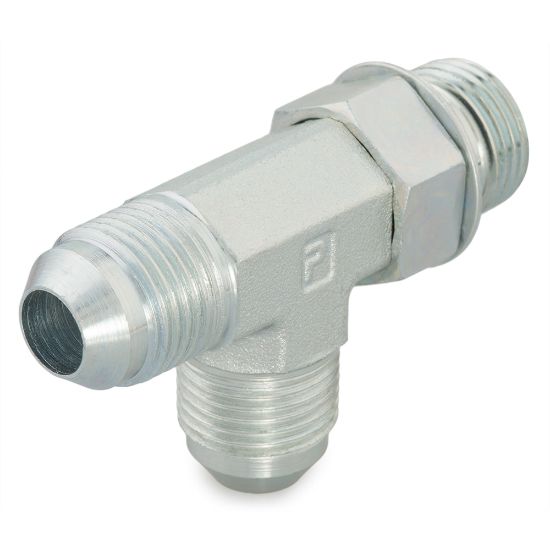

Triple-Lok® 37° Flare JIC Tube Fittings and Adapters - 5 R5OX-S

Parker Triple-Lok 37° Flare JIC Tube Fittings and Adapters are a reliable leak-free metal to metal connection solution for most high pressure hydraulic applications.

Availability:	Backordered
Partner Available:	29 in stock

SKU: 5 R5OX-S

$25.96

Products specifications

Attribute name	Attribute value
Shape	Tee	Connection 3 Thread Size	na
Maximum Dynamic Pressure	6000 psi	Division	Tube Fittings Division
Connection Type	Run Tee	Body Material	Steel
Connection 4 Size	na	Connection 2 Size	Male SAE-ORB
Connection 3 Size	Male 37° Flare	Connection 2 Tube Outside Diameter	na
Connection 3 Tube Outside Diameter	8 mm	O-Ring Material	90 Durometer Nitrile
Connection 4 Tube Outside Diameter	na	Connection 2 Thread Size	na
Specifications Met	SAE J514	Connection 1 Size	Male 37° Flare
Connection 1 Tube Outside Diameter	5/16 inch
