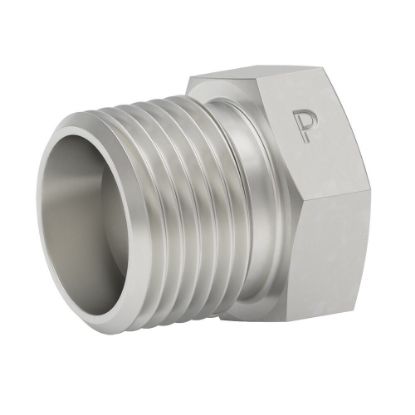

Triple-Lok® 37° Flare JIC Tube Fittings and Adapters - 4-4 GTX-SS

Parker Triple-Lok 37° Flare JIC Tube Fittings and Adapters are a reliable leak-free metal to metal connection solution for most high pressure hydraulic applications.

Availability:	35 in stock
Partner Available:	78 in stock

SKU: 4-4 GTX-SS

$28.11

Products specifications

Attribute name	Attribute value
Connection 1 Tube Outside Diameter	6 mm	Connection 3 Size	na
Connection 3 Tube Outside Diameter	na	Body Material	Stainless Steel
Shape	Straight	Dimensional Weight	0.019784172661870502 lb
Specifications Met	SAE J514	Connection 1 Size	Male 37° Flare
O-Ring Material	na	Connection 2 Thread Size	na
Connection 2 Tube Outside Diameter	na	Connection 2 Size	Female NPT/NPTF
Division	Tube Fittings Division	Maximum Dynamic Pressure	6000 psi
Connection 4 Size	na	Connection 3 Thread Size	na
Connection 4 Tube Outside Diameter	na	Connection Type	37° Flare
