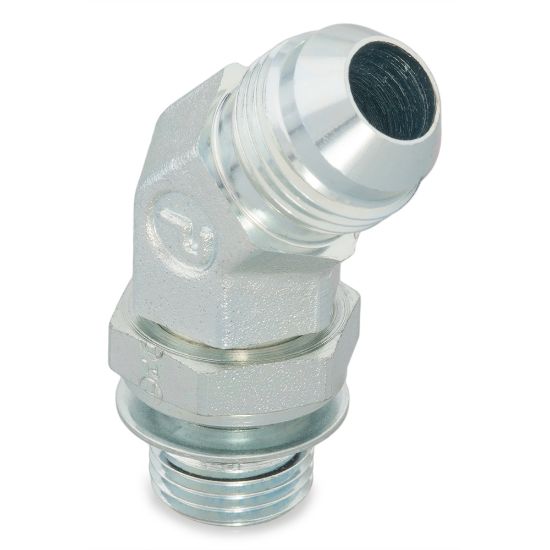

Triple-Lok® 37° Flare JIC Tube Fittings and Adapters - 10M18V87OMXS

Name: Triple-Lok® 37° Flare JIC Tube Fittings and Adapters - 10M18V87OMXS
SKU: 10M18V87OMXS
Availability: OutOfStock

Parker Triple-Lok 37° Flare JIC Tube Fittings and Adapters are a reliable leak-free metal to metal connection solution for most high pressure hydraulic applications.

Availability:

Backordered

SKU: 10M18V87OMXS

Qty:

Products specifications

Attribute name	Attribute value
Division	Tube Fittings Division	Connection 4 Size	na
Maximum Dynamic Pressure	5000 psi	Body Material	Steel
O-Ring Material	90 Durometer Nitrile	Connection 3 Thread Size	na
Connection 1 Tube Outside Diameter	5/8 inch	Connection 2 Tube Outside Diameter	na
Connection 3 Tube Outside Diameter	na	Connection 4 Tube Outside Diameter	na
Connection 1 Size	Male 37° Flare	Connection 3 Size	na
Shape	45° Elbow	Connection Type	Tube to ISO 6149
Connection 2 Size	Male ISO 6149	Specifications Met	SAE J514 and ISO 8434-2
Connection 2 Thread Size	M18x1.5

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382868TA-Triple-Lok
